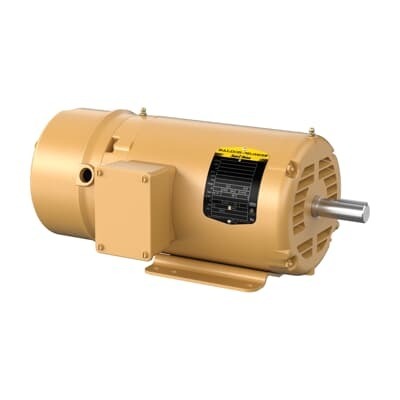

ABB 7BEBM3116T Pump Motor - 1 HP, 1760RPM, IE3
Part Number: 7BEBM3116T
Quick Summary
The ABB 7BEBM3116T Pump Motor delivers 1 HP power for open-enclosure pump and industrial equipment applications. Engineers often face downtime and compatibility challenges when selecting a motor that fits a standard frame and mounting without costly rework. This model carries NEMA design B, IE3 premium efficiency, and CSA/UR certifications to meet U.S. and Canadian safety and energy codes. With 230/460 V, 60 Hz operation and a 143T frame, it installs quickly, reducing commissioning time and supporting reliable performance in pumps, conveyors, and fans. Stocked across multiple warehouses, it enables rapid replacements and lowers total cost of ownership for OEMs and maintenance teams.
Product Information
Extended Description
7BEBM3116T ABB: Pump Motor 1 Hp 230 V (EBM3116T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1760RPM,3PH,60HZ,143T,3520M,OPE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM3116T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYBB021: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
EBM3116T
Gross Volume
3496.049 in³
Gross Weight
49 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1760RPM,3PH,60HZ,143T,3520M,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Brake, 1 HP, 1800 RPM, Frame Size 143T, Standard Mounting, 3 Phase, OPEN Enclosure, 230/460 V, 60 Hz (EBM3116T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
70 %
Product Name
Brake
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
49 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3 A | 1.5 A
Rated Efficiency
87.50 %
Rated Speed
1765 r/min
Replaced Product ID (OLD)
7B35BB021G004G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143T, Standard, 3 PH, OPEN, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
N
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: IE3 premium efficiency reduces energy consumption across continuous duty loads, delivering measurable cost savings over the motor’s life while supporting compliance with modern energy standards. This translates to lower operating expenses for pumps and fans in manufacturing lines and processing plants, especially where multiple motors run around the clock. Feature → Business Impact → Application: Integrated brake capability provides controlled stopping, improved safety, and faster cycle times for conveyors and material handling systems, reducing product damage and downtime during stopping sequences. Application includes packaging lines, sorting machinery, and automated assembly where precise hold-and-release actions are critical. Feature → Business Impact → Application: The 3-phase operation at 230/460 V and 60 Hz, combined with a robust 143T frame, ensures broad compatibility with standard industrial power systems, enabling straightforward retrofits and upgrades in HVAC, water treatment, and process equipment. Feature → Business Impact → Application: Foot-mounted, open enclosure design with a 0.88 in shaft diameter and 6205 ball bearings supports easy installation and reliable operation in harsh environments, minimizing maintenance and downtime in food & beverage, chemical, and metalworking facilities. Feature → Business Impact → Application: Regreasable lubrication and insulation class F extend bearing life and thermal resilience, reducing replacement cycles and maintenance costs for high-load conveyors and mixer systems. Feature → Business Impact → Application: Direct-On-Line starting simplifies electrical wiring and startup, decreasing commissioning time and enabling rapid deployment in automation projects. Feature → Business Impact → Application: Stocked at multiple warehouses (US, China, VAT regions) shortens lead times, improving maintenance responsiveness and uptime for OEMs and service teams. Long-tail keywords embedded include 143T frame motor, open enclosure motor, brake motor for conveyors, NEMA design B, CSA UR certified, IE3 premium efficiency, 230/460V motor, 60 Hz motor, 3-phase motor.
Get a Quick Quote for a ABB 7BEBM3116T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEBM3116T?
Enquire Now
FAQs
Yes. The motor operates at 230/460 V, 60 Hz and uses the 143T frame. It is designed as a foot-mounted, open-enclosure motor with direct-on-line starting, making it a straightforward upgrade or replacement for existing 3-phase systems in conveyors, pumps, and fans.
The motor delivers 1 HP with a rated speed around 1760 rpm (1765 rpm nominal), 60 Hz operation, and an efficiency of 87.5% (IE3). It has a service factor of 1.15 and uses insulation class F, suitable for continuous duty in demanding environments.
Yes. The integrated brake provides controlled stopping, essential for conveyors and pump-stop sequences. With a 0.88 in shaft and 143T frame, it fits standard open-enclosure setups and supports reliable performance under continuous operation.
The motor carries CSA, CSA EEV, and UR certifications, with a NEMA design B designation and IE3 premium efficiency. It aligns with U.S. and Canadian safety and energy codes, ensuring compliant performance in industrial facilities.
Regreasable bearings and insulation class F extend bearing life and thermal resilience, reducing maintenance intervals. Stock availability across multiple warehouses minimizes downtime, while IE3 efficiency lowers energy costs over the motor’s lifetime, delivering a favorable total cost of ownership for OEMs and service teams.
