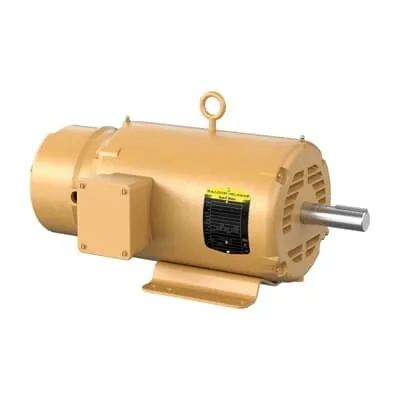

ABB 7BEBM3248T Pump Motor - CSA EEV Certified
Part Number: 7BEBM3248T
Quick Summary
The ABB 7BEBM3248T pump motor delivers reliable 5 HP performance for demanding pump applications in industrial plants. Operators face downtime, energy waste, and fluctuating torque; this motor is designed to minimize those pain points with robust reliability. It carries CSA, CSA EEV, and UR certifications alongside Premium Efficiency performance, providing compliance and long life. With a 184T frame, open enclosure, and 60 Hz operation, it fits retrofit projects and new builds across water treatment, HVAC, and process industries. The dual 230/460 V, 3-phase configuration and 1.15 service factor translate into predictable performance and lower total cost of ownership for continuous-duty pumping systems.
Product Information
Extended Description
7BEBM3248T ABB: Pump Motor 5 Hp 230 V (EBM3248T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184T,3640M,OPE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM3248T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYB021: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EBM3248T
Gross Volume
7192.91 in³
Gross Weight
104 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184T,3640M,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Brake, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 3 Phase, OPEN Enclosure, 230/460 V, 60 Hz (EBM3248T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
81 %
Product Name
Brake
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
104 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.8 A | 6.4 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 3 PH, OPEN, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
J
Voltage Rating
230 V | 460 V
Premium Efficiency 5 HP motor reduces energy losses and operational costs while delivering consistent torque for demanding pump duties. This efficiency translates to measurable energy savings in continuous-running systems and supports compliance with high-efficiency standards in modern facilities. The 60 Hz, dual-voltage (230/460 V), three-phase design ensures easy integration with existing electrical infrastructure and enables flexible project planning. The open enclosure and 184T frame simplify installation and retrofit, fitting standard mounting footprints and minimizing downtime during upgrades. Brake-enabled operation provides controlled stopping for pumps and safety-critical equipment, improving process reliability and worker safety. Regreasable bearings (6206, ball) along with a 1.13 in shaft diameter reduce maintenance intervals and extend service life in harsh environments, while the frame’s 104 lb weight and robust construction support rugged industrial use. Stock availability and a zero-day lead time enhance supply chain resilience for urgent projects. Certifications (CSA, CSA EEV, UR) reinforce regulatory compliance across diverse markets.
Get a Quick Quote for a ABB 7BEBM3248T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEBM3248T?
Enquire Now
FAQs
Yes. The 7BEBM3248T is a 3-phase motor rated for 230/460 V and 60 Hz, designed for open enclosure installations. It uses a 184T frame and foot-mounted configuration, supports direct-on-line starting, and integrates easily with standard control gear, reducing retrofit complexity and commissioning time.
Key specs include 5 HP output, rated speed of 1750 r/min (Synchronous 1800 r/min), 60 Hz operation, 230/460 V dual voltage, and a rated efficiency of 89.5%. It has a service factor of 1.15, insulation class F, and a 3-phase design, making it suitable for continuous-duty pump applications with predictable performance.
This motor excels in pump-driven systems across water treatment, HVAC, and process industries, especially where energy efficiency and reliable braking are beneficial. Its 184T frame, foot mounting, and DOL starting simplify retrofits or new installations, while the brake option supports safe, controlled stopping in pumping and conveying tasks.
The motor carries CSA, CSA EEV, and UR certifications, indicating compliance with recognized safety and performance standards. This helps meet regulatory requirements for critical process industries and enables easier market acceptance in regions that require validated electrical equipment for pump systems and motor-driven machinery.
Maintenance is reduced by regreasable bearings and a robust F-class insulation, extending intervals between service. The 1.15 service factor and Premium Efficiency designation lower energy costs over the motor’s life. Additionally, zero-day lead time and multi-warehouse stocking improve uptime for critical pumping assets and capital planning.
