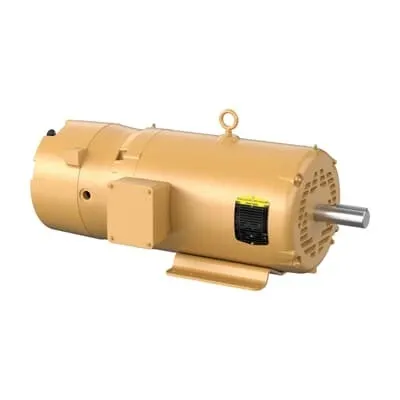

ABB 7BEBM3311T Pump Motor - OPEN Enclosure, 3-Phase, 60 Hz
Part Number: 7BEBM3311T
Quick Summary
ABB 7BEBM3311T is a pump motor designed to deliver consistent pumping performance in manufacturing, water treatment, and industrial fluid handling. With 7.5 HP at 230/460 V and a 3-phase 60 Hz supply, it integrates smoothly into standard plant power architectures while fitting the 213T frame for straightforward retrofit in existing equipment. The OPEN enclosure and regreasable bearings simplify serviceability and cooling, reducing downtime during maintenance cycles. Certified to CSA, CSA EEV, and UR requirements, this motor aligns with regulatory expectations in many North American facilities, while NEMA design compliance and premium IE2 efficiency support energy savings and long-term operating costs. For buyers, the result is reliable torque, solid uptime, and scalable integration with existing drives and control systems.
Product Information
Extended Description
7BEBM3311T ABB: Pump Motor 7.5 Hp 230 V (EBM3311T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770RPM,3PH,60HZ,213T,3734M,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6306
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM3311T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYB021: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE2 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
EBM3311T
Gross Volume
7561.383 in³
Gross Weight
149 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,1770RPM,3PH,60HZ,213T,3734M,OPEN,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Brake, 7.5 HP, 1800 RPM, Frame Size 213T, Standard Mounting, 3 Phase, OPEN Enclosure, 230/460 V, 60 Hz (EBM3311T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
79 %
Product Name
Brake
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
149 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19.6 A | 9.8 A
Rated Efficiency
91 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213T, Standard, 3 PH, OPEN, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
J
Voltage Rating
230 V | 460 V
Feature → 3-Phase 60 Hz, 230/460 V power with 7.5 HP rating → Business Impact → Ensures compatibility with standard industrial power distribution, delivering predictable torque and performance for pumps and conveyors; reduces wiring complexity and integration risk. Application → Suitable for a wide range of pump and fluid-handling applications in manufacturing and water treatment. Feature → Open enclosure with 213T frame and horizontal mounting → Business Impact → Maximizes cooling efficiency and ease of maintenance; simplifies installation in retrofit projects. Application → Ideal for open-system pumps and compact conveyors where accessibility is critical. Feature → Brake present → Business Impact → Enables rapid controlled stopping and enhanced safety on material handling and packaging lines. Application → Suitable for conveyors and sorting equipment with safety interlocks. Feature → Regreasable lubrication → Business Impact → Extends bearing life and reduces maintenance intervals, lowering total cost of ownership. Application → Particularly beneficial in remote or high-hour duty installations. Feature → IE2 efficiency and NEMA design alignment → Business Impact → Improves energy performance and regulatory compliance, reducing operating costs over the motor’s life. Application → Suitable for continuous-duty pumps and driven systems in energy-conscious facilities. Feature → 213T frame, 1.38 in shaft, 149 lb weight, 1800 rpm synchronous speed → Business Impact → Facilitates straightforward replacement and compatibility with common mechanical interfaces and couplings. Application → Supports quick motor swaps in existing equipment pools. Feature → 230/460 V, 3-phase, 60 Hz operation with Direct On Line starting → Business Impact → Simple startup and high starting torque for pump demand spikes; reduces drive complexity. Application → Common in industrial pump and fan applications across multiple sectors. Feature → Foot-mounted base type and horizontal orientation → Business Impact → Simplified installation and leveling, reducing mounting-related vibrations and service time. Application → Widely adaptable to baseplate setups in mechanical rooms and skid mounts.
Get a Quick Quote for a ABB 7BEBM3311T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEBM3311T?
Enquire Now
FAQs
Yes. The 7BEBM3311T is a 3-phase motor rated for 230/460 V at 60 Hz, with a 213T frame and open enclosure. It supports direct-on-line starting and is designed for foot-mounted installations, making retrofits into existing pump assemblies straightforward and reliable.
Core specs include 7.5 HP output, 1770 r/min (approximately 1800 r/min synchronous), IE2 efficiency, and a power factor near 0.79. It is a 3-phase motor rated for 60 Hz operation with a 230/460 V rating, built to NEMA design standards for predictable performance.
Yes, within its open enclosure and 40 °C ambient rating, the motor supports continuous-duty operation. Its 213T frame and foot-mount design ease installation in skid-mounted pump configurations, while its regreasable bearings reduce maintenance intervals typical in such environments.
The motor aligns with CSA, CSA EEV, and UR certification schemes, along with NEMA design considerations and IE2 efficiency. These certifications help streamline procurement approvals in regulated facilities and support energy-compliance objectives.
Regreasable bearings extend service intervals and reduce total maintenance labor. The open enclosure provides easier access for cooling and servicing, delivering lower downtime and faster repairs, which translates to a shorter payback period on pump-driven systems and improved uptime metrics.
