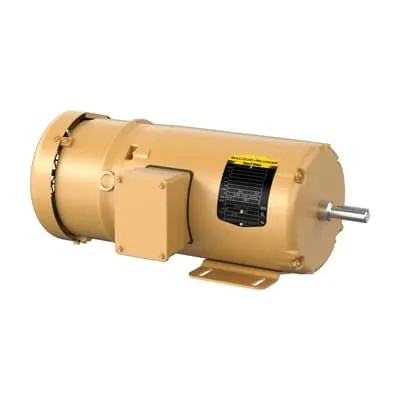

ABB 7BEBM3546 Pump Motor - 1HP, 3PH, 60Hz TEFC
Part Number: 7BEBM3546
Quick Summary
ABB 7BEBM3546 Pump Motor is a compact, 1 HP, 3-phase drive designed for reliable pump systems in water handling, HVAC, and process applications. It helps address space constraints and the need for robust, low-maintenance operation in challenging environments. This motor is built to meet CSA, CSA EEV, and UR certifications, with IE3 Premium Efficiency and a TEFC enclosure to satisfy strict industry standards. In addition to excellent energy performance, it offers stock availability and straightforward installation, delivering meaningful total-cost-of-ownership benefits for engineering and procurement teams.
Product Information
Extended Description
7BEBM3546 ABB: Pump Motor 1 Hp 230 V (EBM3546)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,56,3520M,TEFC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM3546
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYF981: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
EBM3546
Gross Volume
3590.443 inÂł
Gross Weight
44 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1770RPM,3PH,60HZ,56,3520M,TEFC,F1,BR
Lubrication
Regreasable
Made To Order
No
Medium Description
Brake, 1 HP, 1800 RPM, Frame Size 56, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EBM3546)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
69 %
Product Name
Brake
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
44 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.2 A | 1.6 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
230 V | 460 V
TEFC enclosure provides superior protection against dust, debris, and moisture, reducing maintenance frequency and extending motor life in challenging pump environments. Business impact: lower downtime and lower total cost of ownership through fewer service calls and longer intervals between rebuilds. Application: suited for oil-free water pumps and industrial fluid handling where contaminants are present. The 1 HP, 3-phase design with 230/460 V operation and 60 Hz frequency simplifies stocking and supports standardization across multiple sites. Business impact: fewer part variants, faster procurement, and quicker project ramp-up. Application: HVAC pumps and process pumps with common voltage requirements. IE3 Premium Efficiency delivers energy savings and regulatory compliance, translating to reduced operating expenses. Application: continuous pumping duty with favorable energy profile and lower utility bills. Brake present option supports controlled stopping, protecting pumps and connected equipment. Business impact: improved startup/shutdown safety and reduced mechanical stress on driven systems. Application: systems with sensitive loads like chemical dosing or filtration. NEMA design B and frame size 56 ensure compatibility with common mounting footprints and existing installations. Business impact: faster retrofits and easier mechanical interfacing. Application: retrofit projects and upgrading legacy pump systems. Lubrication is Regreasable, enabling simplified maintenance planning. Application: scheduled service with predictable maintenance windows. Stocked at multiple warehouses (US and international), improving lead times and supply chain resilience. Business impact: reduced downtime due to readily available replacements. Application: critical pump systems in manufacturing lines and building services.
Get a Quick Quote for a ABB 7BEBM3546
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEBM3546?
Enquire Now
FAQs
The 7BEBM3546 is a 3-phase motor rated for 230/460 V at 60 Hz, and it comes in a 56 frame with a TEFC enclosure. It is designed for foot-mounted, horizontal orientation (F1) and supports direct-on-line starting. For installations, ensure the control circuit matches the 3-phase supply and that the footprint aligns with a standard 56-frame base plate. This combination simplifies retrofit and new-install projects, reducing adapter hardware needs and installation time.
Key specs include 1 HP power, rated speed around 1770 r/min with 1800 r/min synchronous speed, 60 Hz operation, and 230/460 V availability. The motor features IE3 premium efficiency and a braking option. Rated current is 3.2 A / 1.6 A depending on voltage, and the shaft diameter is 0.63 inches. These metrics support efficient, reliable pump performance with predictable startup and load handling.
Yes. The motor’s TEFC enclosure and NEMA design B designation are well-suited for pump systems in HVAC and water handling where exposure to dust and humidity is a concern. Its CSA/CSA EEV/UR certifications provide regulatory confidence, while IE3 efficiency supports lower operating costs in continuous-duty applications. Ensure proper alignment, mounting, and electrical protection to maximize reliability in regulated environments.
The motor carries CSA, CSA EEV, and UR certifications, aligning with recognized North American safety and performance standards. It follows NEMA design guidelines and offers IE3 Premium Efficiency. These certifications help ensure compliance for regulated facilities and simplify supplier qualification processes, while the brake option adds equipment safety for automated pump systems.
Maintenance should account for a Regreasable lubrication design, periodic inspection of bearings, shaft seal integrity, and brake operation (if applicable). The motor’s high efficiency (IE3) reduces energy costs over its life, delivering a favorable return on investment in steady pumping scenarios. Stock availability and a robust supply footprint further improve uptime by enabling quicker replacements during planned or unplanned maintenance.
