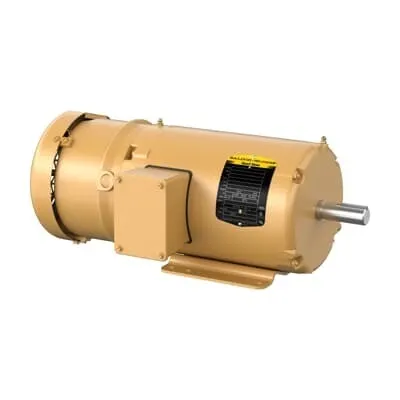

ABB 7BEBM3546T Brake Motor, 1HP TEFC 60Hz-CSA/UR Certified
Part Number: 7BEBM3546T
Quick Summary
ABB 7BEBM3546T brake motor, a 1HP, 230/460V, 3‑phase solution, delivers reliable braking and precise control for conveyors, pumps, and material‑handling equipment. In many industrial setups, inconsistent stops and unplanned downtime are painful to manage. This motor mitigates those challenges with a robust brake mechanism, a TEFC enclosure, and a compact 143T frame for straightforward integration. It carries CSA, UR, and CSA EEV certifications to support global compliance, while its 60 Hz, 230/460 V configuration aligns with standard power distribution. Designed for easy retrofit and new installations, it helps reduce maintenance costs, extend bearing life, and improve operator safety across demanding manufacturing environments.
Product Information
Extended Description
7BEBM3546T ABB: Pump Motor 1 Hp 230 V (EBM3546T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,143T,3520M,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM3546T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYX075: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
EBM3546T
Gross Volume
3590.443 inÂł
Gross Weight
46 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1770RPM,3PH,60HZ,143T,3520M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Brake, 1 HP, 1800 RPM, Frame Size 143T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EBM3546T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
69 %
Product Name
Brake
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
46 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.2 A | 1.6 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
230 V | 460 V
Feature: Integrated brake and TEFC enclosure. Benefit: Safer, repeatable stopping in dusty or humid environments reduces wear and maintenance costs. Application: conveyor lines and packaging equipment where precise stopping is critical. Feature: 1HP, 230/460V, 3-phase, 60Hz, 143T frame. Benefit: Seamless compatibility with common plant power and mounting footprints, enabling quick retrofits and standardized maintenance. Application: OEM lines and retrofits requiring a compact yet powerful motor. Feature: Foot-mounted, horizontal F1 mounting, 4-pole design, Direct On Line starting. Benefit: Simplified installation and immediate startup with minimal drive hardware, lowering installation time and risk. Application: belt conveyors, hoists, and mixers in continuous duty service. Feature: TEFC enclosure with corrosion‑resistant bearings and 40°C ambient tolerance. Benefit: Enhanced reliability in factory floors and light washdown environments, reducing unscheduled downtime. Application: continuous-process lines and material handling in mixed environments. Feature: Certified design (CSA, UR, CSA EEV). Benefit: Regulatory alignment supports global procurement and reduces certification overhead for end users. Application: multinational facilities and compliance-driven projects.
