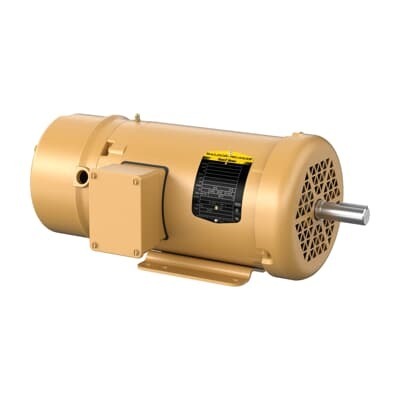

ABB 7BEBM3554TY Brake - 1.5HP TEFC 3PH CSA/UR
Part Number: 7BEBM3554TY
Quick Summary
The ABB 7BEBM3554TY brake provides reliable stopping torque for 1.5 HP motors in conveyors and material handling. In demanding environments, improper braking can lead to downtime, product damage, or misalignment during stop-and-hold cycles. This unit is CSA, CSA EEV, and UR certified, supporting safety and regulatory compliance across North American facilities. With a TEFC enclosure, 3-phase 60 Hz operation, and a footprint designed for standard 145T frames, it installs quickly and withstands rugged plant conditions. Stocked at multiple warehouses with zero-day lead times, it offers predictable delivery for project timelines and service contracts, helping maintain uptime and reduce total cost of ownership.
Product Information
Extended Description
7BEBM3554TY ABB: Brake 1.5 Hp 230 V (EBM3554TY)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,145T,3524M,T
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM3554TY
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYA021: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
EBM3554TY
Gross Volume
3590.443 in³
Gross Weight
48 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1.5HP,1770RPM,3PH,60HZ,145T,3524M,TEFC,F
Made To Order
No
Medium Description
Brake, 1.5 HP, 1800 RPM, Frame Size 145T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EBM3554TY)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
Brake
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
48 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: Brake Present and 1.5 HP output provide precise stopping torque. This reduces mechanical shock, belt wear, and unexpected equipment cycling, extending motor life and lowering maintenance costs for heavy-load conveyors. Application: ideal for packaging lines and material-handling systems that require reliable stop-and-hold sequences without slip. Feature: 230/460 V, 3-phase, 60 Hz compatibility enables seamless integration with standard US power distributions. Business Impact: eliminates unnecessary power conversion, reduces wiring complexity, and supports faster commissioning. Application: retrofit projects or new installations using common motor drives in industrial facilities. Feature: TEFC enclosure and 145T frame deliver rugged protection in dusty or humid environments. Business Impact: minimizes environmental ingress, extends service intervals, and improves uptime in demanding plants. Application: floor-mounted, heavy-duty conveyors and other continuous-duty drives in manufacturing settings. Feature: IE3 efficiency and insulation class F support energy savings and temperature tolerance. Business Impact: lowers operating cost, improves reliability in high-ambient-temperature plants, and aligns with modern energy standards. Application: continuous-duty drives across packaging, plastics, and material-handling lines. Feature: CSA/CSA EEV/UR certifications and stock availability across US and international warehouses support procurement and compliance. Business Impact: reduces risk during audits, speeds supplier qualification, and enables rapid deployment in multi-site operations. Application: motor-drive assemblies for North American plants and global manufacturing networks.
