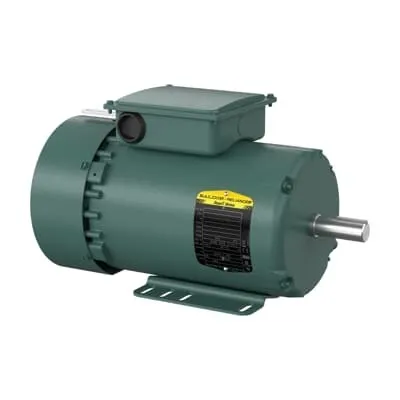

ABB 7BEBM3558T-S Short Series Brake - IP22 IC411 27K
Part Number: 7BEBM3558T-S
Quick Summary
The Short Series Brake for ABB 7BEBM3558T-S provides reliable braking for 3-phase motors in conveyors and packaging lines. Engineers seek braking solutions that meet tight timing, uptime, and warranty requirements across global facilities. This brake carries CE, CSA, and UR certifications with WEEE compliance, enhancing regulatory readiness for diverse markets. With global stocking at multiple warehouses and a 0 day lead time, you can reduce downtime, speed delivery, and streamline procurement for drive systems. This translates into measurable business value, including improved line throughput, easier compliance audits, and a smoother maintenance cycle across industries such as packaging, material handling, and food processing.
Product Information
Extended Description
7BEBM3558T-S ABB: Short Series Brake 2 Hp 230 V (EBM3558T-S)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2/1.5KWHP,1760 1/MIN IP22 IC411 27K
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM3558T-S
Certification Agency
CE | CSA | CSA EEV | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYX162: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
EBM3558T-S
Gross Volume
3590.443 in³
Gross Weight
58 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
2/1.5KWHP,1760 1/MIN IP22 IC411 27KGRPM
Made To Order
No
Medium Description
Short Series Brake, 2 HP, 1800 RPM, Frame Size 145Ty, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EBM3558T-S)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TY
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
77 %
Product Name
Short Series Brake
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
58 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.6 A | 2.8 A
Rated Efficiency
86.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Ty, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: 2 HP brake rated for 230 V at 60 Hz on a 145TY frame with TEFC enclosure. Business Impact: Delivers compact, reliable stopping with a robust enclosure, reducing panel footprint and installation complexity. Application: Ideal for small to mid-size motors on conveyors, packaging lines, and light-duty material handling where space is at a premium and quick response is critical. Feature: High efficiency and favorable power factor (Rated Efficiency 86.5% and PF 77%). Business Impact: Lowers energy consumption and cooling requirements, translating to lower operating costs over the motor’s life. Application: Well-suited for continuous-duty drive systems seeking IE3-level efficiency in automated lines. Feature: TEFC enclosure, steel frame, and IP22 protection. Business Impact: Enhanced durability in dirty or humid environments, reducing unplanned downtime and protective enclosure maintenance. Application: Harsh industrial settings such as food processing, packaging, and material handling where enclosure integrity matters. Feature: Direct On Line starting and 0 day lead time with multi-warehouse stocking. Business Impact: Simplifies start-up wiring and configuration; dramatically shortens procurement cycles and spare-part availability. Application: Critical spare for production lines requiring fast replacement and minimal downtime. Feature: Mounting flexibility (Foot Mounted, Horizontal F3) and standard shaft (0.88 in) and frame size (145TY). Business Impact: Eases retrofit and integration with existing motors and coupling assemblies, reducing installation engineering time. Application: Broad compatibility across common ABB drive systems and standard motor bases in conveyors and packaging lines. Feature: Certifications (CE, CSA, CSA EEV, UR, WEEE) and ambient rating (40 °C). Business Impact: Ensures regulatory compliance and reliability under typical plant temperatures, supporting audits and risk mitigation. Application: Global operations requiring compliance across markets and industries such as manufacturing, logistics, and food & beverage.
