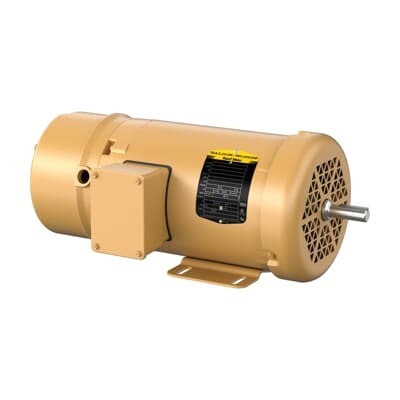

ABB 7BEBM3558Y Brake - 2 HP, 230/460 V, CSA/UR Certified
Part Number: 7BEBM3558Y
Quick Summary
Brake 2 HP 230 V is engineered to reliably brake industrial motors in automation systems and conveyor drives. Operators face challenges with slow stop times, wear, and inconsistent braking under high-cycle loads. This unit carries CSA, CSA EEV, and UR certifications to support safety and regulatory compliance across North America. Built for quick deployment and long service life, it pairs a 2 HP brake with 230/460 V 3-phase power, a TEFC enclosure, and a frame size 56 to fit standard motor mounts, supporting faster installation, reduced downtime, and predictable braking performance.
Product Information
Extended Description
7BEBM3558Y ABB: Brake 2 Hp 230 V (EBM3558Y)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1760RPM,3PH,60HZ,56,3528M,TEFC,
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM3558Y
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYA022: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
EBM3558Y
Gross Volume
3496.049 inÂł
Gross Weight
52 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
2HP,1760RPM,3PH,60HZ,56,3528M,TEFC,F1,BR
Made To Order
No
Medium Description
Brake, 2 HP, 1800 RPM, Frame Size 56, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EBM3558Y)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
77 %
Product Name
Brake
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
52 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.6 A | 2.8 A
Rated Efficiency
86.50 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
2 HP, 1800 RPM, Frame Size 56, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: 2 HP brake rated for 1760 RPM at 60 Hz with 230/460 V 3-phase supply. Business Impact: Enables direct-on-line braking with precise stop control, reducing cycle time and mechanical wear. Application: Suitable for conveyors, pumps, and machine tools using TEFC motors. Feature: Frame Size 56 with Foot Mounted base and horizontal F1 mounting. Business Impact: Simplifies retrofits and installations by matching standard motor footprints, cutting mounting time and misalignment risk. Application: Ideal for existing Baldor-Reliance and other NEMA B design motors. Feature: TEFC enclosure and insulation class F for operation up to 40 °C. Business Impact: Maintains performance in typical plant environments, extending motor brake life and reducing failures due to overheat. Application: Industrial drives, packaging lines, and material handling equipment. Feature: Synchronous speed 1800 r/min and 4-pole, 3-phase design with 60 Hz. Business Impact: Ensures predictable braking performance across loads, improving process control and safety margins. Application: High-cycle braking in continuous duty applications. Feature: Stocked at multiple warehouses (US and China) with 0 day lead time and clear warranty policy. Business Impact: Shortens procurement cycles and minimizes downtime for critical line stoppages. Application: Suitable for global manufacturing lines requiring rapid deployment and reliable support with CSA/UR compliance.
