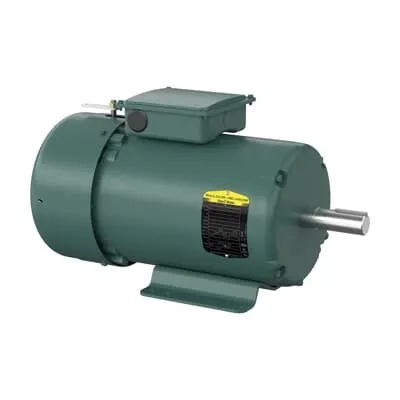

ABB 7BEBM3611T-S Brake - 3HP TEFC 230/460V, 60Hz CE/CSA EEV
Part Number: 7BEBM3611T-S
Quick Summary
ABB 7BEBM3611T-S Brake is a compact 3 HP short-series brake engineered for 182T frame motors, designed to hold loads in automated conveyors and packaging lines. This braking solution addresses the critical challenge of reliable load retention during power loss or stop events, reducing drift and unwanted movement. It carries essential safety and compliance marks, including CE, CSA, and CSA EEV, with UR and WEEE recognition for global applicability. By pairing a proven 60 Hz, 230/460 V TEFC motor interface with a robust mechanical brake, it delivers consistent performance, easy integration, and predictable maintenance windows, supporting uptime-centric procurement and total cost of ownership goals.
Product Information
Extended Description
7BEBM3611T-S ABB: Short Series Brake 3 Hp 230 V (EBM3611T-S)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,182T,3632M,TEF
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6206
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM3611T-S
Certification Agency
CE | CSA | CSA EEV | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYQ612: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
EBM3611T-S
Gross Volume
7192.91 inÂł
Gross Weight
83 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
3HP,1760RPM,3PH,60HZ,182T,3632M,TEFC,F3
Made To Order
No
Medium Description
Short Series Brake, 3 HP, 1800 RPM, Frame Size 182T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EBM3611T-S)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182T
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
75 %
Product Name
Short Series Brake
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
83 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.4 A | 4.2 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B36Q612S266G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 182T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: 3 HP, 1760 RPM, 60 Hz operation enables compatibility with standard industrial drives. Business Impact: Aligns with common motor libraries, reduces integration risk, and streamlines stocking for mid-size OEMs. Application: Ideal for compact conveyors and feed systems requiring reliable stop-and-hold functionality. Application of long-tail keywords: 3 HP brake for conveyors, 60 Hz motor brake, 182T frame compatibility. Feature: TEFC enclosure and steel frame provide rugged protection in harsh plant environments. Business Impact: Improves lifecycle durability, reduces environmental ingress, and lowers maintenance frequency. Application: Suitable for factory floors with dust and moisture exposure in packaging and material handling.Feature: Foot-mounted base, horizontal mounting (F3) with standard 182T frame. Business Impact: Simplifies retrofits and new installs, enabling plug-and-play installation with minimal fabrication. Application: Used in existing line layouts where precise alignment and quick replacement are critical.Feature: Direct On Line starting and brake present for immediate hold capability. Business Impact: Shortens reaction time during stop events, enhancing machine safety and operator protection. Application: Appropriate for stop/start cycles in automated mills and sheet-forming equipment.Feature: Stocked at multiple warehouses with 0-day lead time and warranty return policy. Business Impact: Reduces downtime risk and accelerates project timelines for OEMs and distributors. Application: Ideal for just-in-time manufacturing environments and spares inventories.Feature: Electrical data and ratings (230 V / 460 V, 60 Hz) support dual-voltage operation. Business Impact: Maximizes flexibility across regional installations and drives harmonization with existing motor fleets. Application: Common in global manufacturing plants with mixed-voltage motors. Feature: Insulation Class F and NEMA B design code indicate robust thermal and performance limits. Business Impact: Ensures reliable operation under continuous duty and elevated ambient temperatures. Application: Suitable for continuous-duty drives in conveyor networks and machine tools.
