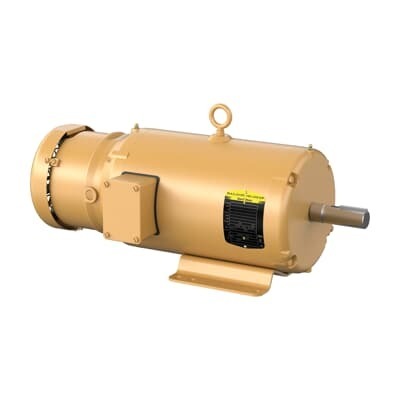

ABB 7BEBM3615T Brake Motor - 5HP, 60Hz, TEFC IE3
Part Number: 7BEBM3615T
Quick Summary
ABB 7BEBM3615T Brake Motor delivers 5 HP three-phase power for reliable operation in heavy-duty conveyors and pump systems. When uptime and controlled stopping matter, this brake-equipped motor minimizes unexpected starts and reduces maintenance complexity. It carries IE3 Premium Efficiency with CSA/CSA EEV and UR certifications, ensuring energy savings and regulatory compliance. With US origin, zero lead time, and stocked warehouses, it supports fast procurement and consistent supply for engineered systems and OEM projects, helping you meet project timelines and total cost of ownership targets.
Product Information
Extended Description
7BEBM3615T ABB: Pump Motor 5 Hp 230 V (EBM3615T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184T,3642M,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM3615T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYR030: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EBM3615T
Gross Volume
7192.91 in³
Gross Weight
106 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184T,3642M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Brake, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EBM3615T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
Brake
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
106 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.4 A | 6.7 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
J
Voltage Rating
230 V | 460 V
Feature: Integrated brake and TEFC enclosure deliver immediate, controlled stopping and safer maintenance. Business Impact: Reduces setup time, prevents restart hazards, and lowers downtime costs. Application: Suitable for conveyors and lifting applications in food, packaging, and material handling lines. Feature: 5 HP, 1750 r/min output on a rugged 184T frame. Business Impact: Provides strong torque characteristics for demanding loads while maintaining reliability, reducing belt wear and mechanical stress. Application: Ideal for continuous-duty drives in manufacturing lines. Feature: 230/460 V, 3-phase operation at 60 Hz with DOL starting. Business Impact: Simplifies electrical design, enhances compatibility with standard plant power, and minimizes starter equipment needs. Application: Common in U.S. production facilities and OEM assemblies. Feature: TEFC enclosure and steel frame. Business Impact: Enhanced protection against dust, moisture, and industrial contaminants, enabling longer motor life in harsh environments. Application: Suitable for workshop floors, warehouse floors, and outdoor installations with proper protection. Feature: IE3 Premium Efficiency with 1.15 service factor. Business Impact: Delivers energy savings, lowers operating costs, and supports regulatory compliance reporting. Application: Energy-conscious motor selection for high-cycle processes. Feature: Regreasable bearings (6206) and robust lubrication strategy. Business Impact: Reduces preventive maintenance frequency and extends bearing life. Application: Maintenance-efficient choice for long-running drives. Feature: Direct On Line starting and NEMA B design. Business Impact: Simplifies installation, reduces soft-start hardware, and minimizes torque shock. Application: General-purpose drive with straightforward commissioning in new builds and upgrades.
Get a Quick Quote for a ABB 7BEBM3615T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEBM3615T?
Enquire Now
FAQs
Yes. The 7BEBM3615T is designed for horizontal, foot-mounted installation with an 184T frame. It uses a TEFC enclosure suitable for continuous service in industrial environments and supports 230/460 V, 3-phase power at 60 Hz. Ensure mounting holes align with the standard 184T footprint and verify that the brake wiring and DOL starter are wired per the installation manual.
Key specs include 5 HP rated power, 1750 r/min rated speed, and rated currents of 13.4 A / 6.7 A (depending on voltage configuration). It operates on 230 V or 460 V, 3-phase, 60 Hz, with a 1.15 service factor and 78% power factor. The shaft diameter is 1.13 in, and the motor uses a 184T frame with TEFC enclosure for reliability.
Yes. With continuous-duty rating, a robust TEFC enclosure, and an integrated brake system, this motor is well-suited for conveyors and pumps where precise stop/start control and safety are critical. Its NEMA Design B and IE3 efficiency support energy-conscious, reliable operation across demanding production lines and frequent stopping cycles.
The motor carries IE3 Premium Efficiency, CSA, CSA EEV, and UR listings. These certifications confirm energy efficiency, safety compliance, and compatibility with North American regulatory standards. Choosing a certified motor simplifies regulatory audits and supports green industrial initiatives while reducing operating costs.
Maintenance benefits include regreasable bearings and a durable steel frame that withstands routine wear, reducing downtime. The integrated brake improves process safety and reduces unplanned stops, boosting throughput. The result is lower total cost of ownership through energy savings (IE3), fewer maintenance events, and faster commissioning for OEM or retrofit projects.
