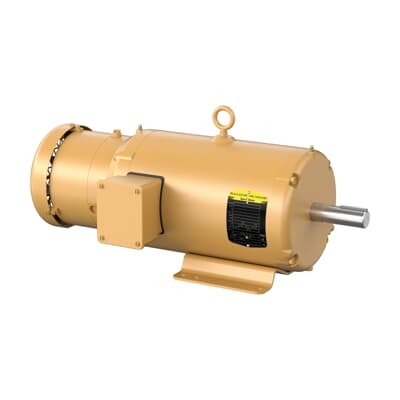

ABB 7BEBM3615T-DI Brake - 5HP/230V - CSA CSA EEV UR
Part Number: 7BEBM3615T-DI
Quick Summary
ABB 7BEBM3615T-DI brake provides reliable braking for 3-phase motors in 60 Hz industrial drives. In fast-moving lines like conveyors and packaging systems, unpredictable stops drive wear, downtime, and maintenance costs. It carries CSA, CSA EEV, and UR listings to support safety compliance across North America and global facilities. With a TEFC enclosure, a 184T frame, and 0-day lead time stocked across multiple warehouses, it helps procurement teams meet project schedules and reduce total cost of ownership. Designed for continuous duty and reliable hold, it integrates easily with ABB Baldor-Reliance motors and standard mounting footprints, delivering predictable performance in demanding environments.
Product Information
Extended Description
7BEBM3615T-DI ABB: Brake 5 Hp 230 V (EBM3615T-DI)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184T,3642M,TEF
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM3615T-DI
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EBM3615T-DI
Gross Volume
8416.408 in³
Gross Weight
125 lb
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184T,3642M,TEFC,F1
Made To Order
No
Medium Description
Brake, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EBM3615T-DI)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
Brake
Product Net Depth / Length
27.438 in
Product Net Height
16.75 in
Product Net Weight
125 lb
Product Net Width
18.313 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.4 A | 6.7 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 5 HP, 230/460 V, 60 Hz, three-phase brake delivers precise stopping and hold capability, reducing torque surges and motor wear while shortening stop times on conveyors, pumps, and fans. This translates to lower maintenance costs and improved line uptime. Application: Ideal for packaging lines and material handling where rapid, controlled braking improves throughput and safety. Feature → Business Impact → Application: TEFC (Totally Enclosed Fan C cooled) enclosure and steel frame provide rugged protection in dusty, humid, or factory-floor environments. Benefit: longer service life, lower enclosure risk, and easier cleaning; suitable for harsh manufacturing floors. Application: Heavy-duty conveyors and pumping stations requiring reliable protection against contaminants. Feature → Business Impact → Application: 184T frame with horizontal mounting and foot-mounted base simplifies installation, reduces retrofit time, and lowers installation costs. Benefit: faster commissioning and fewer field adjustments. Application: New machinery builds and retrofits where standard footprints streamline procurement and assembly. Feature → Business Impact → Application: Direct On Line starting and 1.13 in shaft diameter support robust coupling and straightforward alignment, improving start-up reliability. Benefit: reduced downtime during commissioning and maintenance windows. Application: Motors and drives with 1.13 in shafts and standard coupling allows straightforward integration. Feature → Business Impact → Application: Certified safety (CSA, CSA EEV, UR) ensures compliance with North American and international standards, minimizing risk during audits and field servicing. Benefit: smoother procurement, fewer compliance hurdles, and faster project sign-offs. Application: Global deployments across facilities with strict safety and energy regulations.
