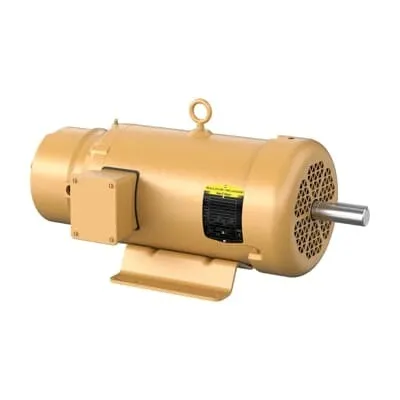

ABB 7BEBM3707Y Brake - 5HP TEFC, 60Hz, 230/460V (CSA/UR)
Part Number: 7BEBM3707Y
Quick Summary
Brake 5 HP braking solution for 3-phase motors used in conveyors and packaging lines. The ABB 7BEBM3707Y delivers reliable stopping torque with fast release, reducing wear and unplanned downtime in demanding industrial environments. Engineers often contend with inconsistent braking, heat buildup, and misalignment in high-cycle applications; this unit offers a TEFC enclosure, dual voltage compatibility, and direct-on-line start to simplify installation and maintenance. Certifications including CSA, CSA EEV, and UR recognition support compliance across North American plants, while premium efficiency and robust frame design help lower lifecycle costs. By aligning with standard NEMA design and mounting conventions, it integrates smoothly with existing motor systems and spare-parts inventories, boosting uptime and operational profitability.
Product Information
Extended Description
7BEBM3707Y ABB: Brake 5 Hp 230 V (EBM3707Y)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,215,3644M,TEFC
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM3707Y
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYK140: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EBM3707Y
Gross Volume
7192.91 inÂł
Gross Weight
100 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,215,3644M,TEFC,F1,B
Made To Order
No
Medium Description
Brake, 5 HP, 1800 RPM, Frame Size 215, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EBM3707Y)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
76 %
Product Name
Brake
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
100 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.8 A | 6.9 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 215, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: 5 HP braking capacity provides sufficient stopping torque for 3-phase motors in mid-to-high cycle applications. Business Impact: Improves brake reliability, minimizes belt wear and downtime, and supports predictable line stoppages. Application: Ideal for conveyors, packaging lines, and machine tools where consistent braking is critical. Feature: Dual voltage operation (230 V / 460 V) at 60 Hz offers flexible deployment across equipment and plants. Business Impact: Reduces wiring changes, inventory complexity, and enables a single brake solution for multi-volt fleets. Application: Retrofit projects and new installations in mixed-voltage facilities. Feature: TEFC enclosure protects internal components from dust, moisture, and incidental contact. Business Impact: Extends service life in harsh factory environments and lowers maintenance costs. Application: Heavy duty manufacturing floors, food and beverage lines, and outdoor setups. Feature: Frame Size 215 with Foot Mounted, Horizontal (F1) mounting. Business Impact: Simplifies installation, aligns with common motor footprints, and minimizes retrofit engineering. Application: Standard mounting on legacy motors and new builds alike. Feature: NEMA Design Code A, Insulation Class F, and Premium Efficiency. Business Impact: Ensures compatibility with typical electrical standards while delivering energy savings and reduced heat. Application: OEM and aftermarket motor systems requiring reliable, code-compliant braking. Feature: Direct On Line starting and 3-phase operation. Business Impact: Fast engagement, easier commissioning, and reduced start-up time. Application: Lines with high-speed changeovers and tight process windows. Feature: Robust mechanicals (Bearing 6206 Ball, Shaft 1.13 in) and Dimension Sheet support. Business Impact: Enhanced durability and predictable torque characteristics, lowering total cost of ownership. Application: Heavy-use braking in continuous duty environments.
