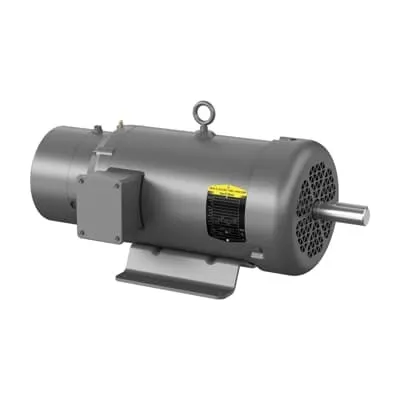

ABB 7BEBM3707Y-DI U-Frame 5 HP - CSA EEV UR
Part Number: 7BEBM3707Y-DI
Quick Summary
ABB 7BEBM3707Y-DI is a U-Frame motor delivering 5 HP at 230/460 V for 3-phase industrial drives. This compact, horizontal, foot-mounted design fits tight spaces while delivering reliable torque and smooth operation. For projects facing downtime, space constraints, or energy challenges, this model offers robust direct-on-line starting with a TEFC enclosure suitable for demanding environments. With CSA, CSA EEV, and UR certifications, it’s prepared for global deployment, while premium efficiency supports lower operating costs. When selecting a motor for conveyors, pumps, or fans, you gain predictable performance, broad stock availability, and installation simplicity that accelerates project timelines and reduces total cost of ownership.
Product Information
Extended Description
7BEBM3707Y-DI ABB: U-Frame 5 Hp 230 V (EBM3707Y-DI)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,215,3644M,TEFC
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM3707Y-DI
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
EBM3707Y-DI
Gross Volume
7192.91 in³
Gross Weight
127 lb
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,215,3644M,TEFC,F1,B
Made To Order
No
Medium Description
U-Frame, 5 HP, 1800 RPM, Frame Size 215, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EBM3707Y-DI)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
76 %
Product Name
U-Frame
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
127 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.8 A | 6.9 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 215, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: U-Frame 215 frame and 5 HP output with 4-pole construction at 1750 rpm. Business Impact: Delivers high starting torque in a compact footprint, enabling space-constrained installations without compromising performance. Application: Ideal for conveyors, small pumps, and fans in packaging or process lines where space is at a premium. Feature: TEFC enclosure rated for 40 °C ambient and 3-phase 60 Hz operation. Business Impact: Protects internal components from dust, humidity, and contaminants, reducing maintenance cycles and extending motor life. Application: Suitable for rough shop floors and dusty industrial environments. Feature: Premium Efficiency (89.50%) with a 1.15 service factor. Business Impact: Improves energy efficiency and reliability under continuous-duty loads, lowering energy costs and reducing utility penalties. Application: Continuous duty drives in manufacturing lines, reducing total cost of ownership. Feature: Direct On Line starting and 3-phase input at 230/460 V. Business Impact: Simplifies start-up sequences and reduces soft-start requirements, cutting installation complexity and downtime. Application: Powering belt conveyors, pumps, and fans with quick, predictable startups. Feature: 6206 ball bearings, shaft 1.13 in, and 127 lb weight with foot-mount base. Business Impact: Enhances mechanical durability and alignment stability, easing installation and long-term maintenance. Application: Any fixed-base drive where precise alignment and serviceability matter. Feature: Stocked at multiple warehouses and CSA/UR/EEV certifications. Business Impact: Shorter lead times, easier procurement, and assured compliance for regulated environments. Application: Global projects and multinational operations needing fast access to spares and support.
