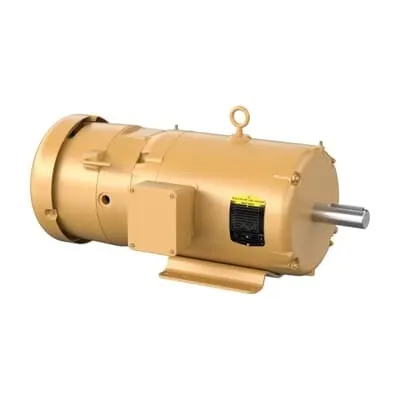

ABB 7BEBM3710T Pump Motor - Premium TEFC 60Hz
Part Number: 7BEBM3710T
Quick Summary
ABB 7BEBM3710T Pump Motor delivers reliable pumping performance for industrial fluid handling. The unit is designed to meet the demands of continuous operation, reducing downtime and maintenance costs. This motor features premium efficiency, a TEFC enclosure, and a 3-phase 60 Hz rating so it can run on 230 V or 460 V supply while delivering stable torque at 1770 rpm. Users often struggle with voltage compatibility, obsolescence risk, and sourcing in short lead times. With CSA, CSA EEV, and UR certifications, the motor aligns with stringent electrical safety standards while ensuring practical field serviceability. Its 213T frame, foot-mount base, and 0-day lead time stock support quick installation and reliable supply.
Product Information
Extended Description
7BEBM3710T ABB: Pump Motor 7.5 Hp 230 V (EBM3710T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770RPM,3PH,60HZ,213T,3738M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6306
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM3710T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYL065: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
EBM3710T
Gross Volume
13438.538 inÂł
Gross Weight
158 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,1770RPM,3PH,60HZ,213T,3738M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Brake, 7.5 HP, 1800 RPM, Frame Size 213T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EBM3710T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
80 %
Product Name
Brake
Product Net Depth / Length
40.938 in
Product Net Height
18.625 in
Product Net Weight
158 lb
Product Net Width
17.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19 A | 9.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
J
Voltage Rating
230 V | 460 V
7.5 HP output meets demanding pumping loads, delivering consistent flow and reducing risk of motor overload in water supply or process pump applications. The 213T frame and 230/460 V compatibility enable straightforward integration into existing pump systems and OEM equipment. TEFC enclosure protects windings from dust and moisture, extending service life in challenging environments. With 60 Hz operation and a 3-phase supply, the motor maintains stable torque and reliable performance across a range of industrial processes. Brake-equipped design provides controlled stopping and improved safety for pump applications, while Direct On Line starting simplifies electrical installation and reduces starter components, minimizing drive-side wear and accelerating commissioning. Zero-day lead time and multi-warehouse stocking support fast fulfillment and reduced downtime during maintenance or part swap. The 0-day lead time coupled with US-origin production helps ensure supply chain resilience. Rated at 91.70% efficiency and 1.15 service factor, the motor delivers reliable performance under continuous duty. Along with heavy-duty bearings (6307 ball) and a regreasable lubrication design, maintenance windows can be extended with predictable service intervals. Foot-mounted horizontal orientation (F1) and a robust steel frame support flexible installation options. The motor's 1.38 in shaft diameter and 7.5 HP rating makes it compatible with a wide range of pump trains and coupling sizes.
