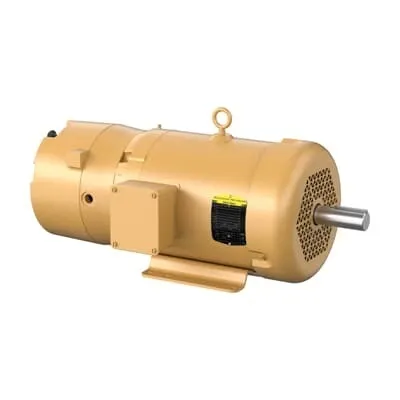

ABB 7BEBM3730TY Brake - 7.5HP TEFC, CSA/UR certified
Part Number: 7BEBM3730TY
Quick Summary
ABB brake 7BEBM3730TY is a high-efficiency braking solution for 3-phase motors in conveyors and presses. The challenge for engineering teams is ensuring reliable stop-and-hold performance while minimizing downtime and maintenance costs. This brake carries CSA, CSA EEV, and UR certifications, a rugged TEFC enclosure, and a 213T frame designed for durable service in demanding environments. With stock available in multiple warehouses and a 0-day lead time, procurement becomes predictable, supporting faster project kick-offs and lower total cost of ownership through improved uptime and energy efficiency.
Product Information
Extended Description
7BEBM3730TY ABB: Brake 7.5 Hp 230 V (EBM3730TY)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770RPM,3PH,60HZ,213T,3736M,T
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6306
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM3730TY
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYA021: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
EBM3730TY
Gross Volume
13438.538 inÂł
Gross Weight
146 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
7.5HP,1770RPM,3PH,60HZ,213T,3736M,TEFC,F
Made To Order
No
Medium Description
Brake, 7.5 HP, 1800 RPM, Frame Size 213T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EBM3730TY)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
81 %
Product Name
Brake
Product Net Depth / Length
40.938 in
Product Net Height
18.625 in
Product Net Weight
146 lb
Product Net Width
17.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
18.8 A | 9.4 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: 7.5 HP braking capacity at 230/460 V, 3-phase, 60 Hz. Business Impact: Delivers reliable stopping torque and fast response to stop commands, reducing belt slip and mechanical wear. Application: ideal for conveyors, packaging lines, and machine tools that require precise holds after shutdown. Feature: TEFC enclosure and 213T frame. Business Impact: Provides rugged protection against dust, oil, and washdowns, extending motor life and reducing maintenance cycles. Application: harsh factory environments where reliability is critical. Feature: Direct-on-line starting compatibility with a 1.38 in shaft and 1800 r/min synchronous speed. Business Impact: Simplifies mechanical integration and reduces retrofit costs, enabling quick installation on existing lines. Application: retrofits and new equipment with standard 3-phase motors. Feature: Global stocking and zero-day lead time. Business Impact: Accelerates maintenance workflows and minimizes downtime during spares replenishment. Application: maintenance spare parts and emergency service scenarios. Feature: Certifications including CSA, CSA EEV, and UR with IE3 efficiency indication. Business Impact: Ensures compliance with safety and energy regulations while delivering energy savings. Application: regulated industries and efficiency-driven projects that demand proven quality.
