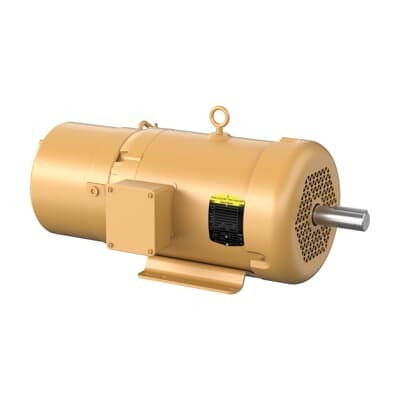

ABB 7BEBM3734TY-DI Brake - CSA EEV UR Certified
Part Number: 7BEBM3734TY-DI
Quick Summary
ABB 7BEBM3734TY-DI brake is a 10 HP braking solution for 3-phase TEFC motors in industrial drives and automation lines. This design addresses common downtime challenges caused by unreliable stops and inconsistent holding torque. It carries strong certifications including CSA, CSA EEV, and UR, underscoring safety and regulatory compliance for global deployments. The unit is engineered for 60 Hz operation with 230/460 V compatibility, optimized for frame size 215T, and backed by a robust mechanical package. In practice, it supports safer starts, quicker stop sequences, and predictable motor control—delivering measurable business value for manufacturers and integrators focused on uptime and energy efficiency.
Product Information
Extended Description
7BEBM3734TY-DI ABB: Brake 10 Hp 230 V (EBM3734TY-DI)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215T,3752M,TE
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6306
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM3734TY-DI
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EBM3734TY-DI
Gross Volume
13438.538 inÂł
Gross Weight
195 lb
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215T,3752M,TEFC,F1
Made To Order
No
Medium Description
Brake, 10 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EBM3734TY-DI)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
Brake
Product Net Depth / Length
40.938 in
Product Net Height
18.625 in
Product Net Weight
195 lb
Product Net Width
17.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
25 A | 12.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: 10 HP braking capability at 60 Hz with a 1770 RPM rating. Business Impact: Delivers precise, repeatable stopping and holding torque, reducing cycle times and wear on driven equipment. Application: Conveyor lines and hoists where fast, reliable brake action minimizes drift and improves line throughput. Feature: TEFC enclosure with steel 215T frame. Business Impact: Enhanced durability in harsh environments lowers maintenance costs and extends service intervals. Application: Automated material handling and packaging systems in production environments. Feature: 230 V / 460 V, 3-phase input with 0.85 power factor. Business Impact: Simplifies integration with existing motor networks and reduces wiring complexity, enabling faster installation. Application: Retrofit projects and new builds across mixed-voltage motor fleets. Feature: Certified for CSA, CSA EEV, and UR. Business Impact: Compliance reduces risk during audits and supports regional approvals for industrial installations. Application: Plants subject to rigorous electrical and safety standards. Feature: IE3 premium efficiency designation. Business Impact: Improves energy performance and lowers operating costs over the motor-drive lifecycle. Application: Continuous duty applications where energy usage is a critical metric. Feature: Stocked at multiple warehouses with 0-day lead time. Business Impact: Shortens procurement cycles and accelerates uptime in maintenance windows. Application: Critical spares programs for OEMs and end users.
