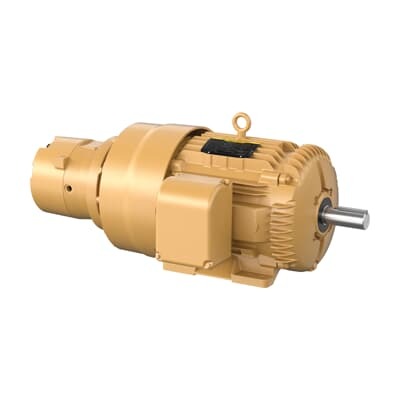

ABB 7BEBM4103T Motor - Premium Efficiency TEFC
Part Number: 7BEBM4103T
Quick Summary
ABB 7BEBM4103T Motor is a 25 HP, 3-phase pump motor designed for reliable operation in demanding pumping and process applications. This model couples a rugged 284T frame with a TEFC enclosure, enabling dependable performance in dusty or semi-enclosed environments. If you’re seeking a drop-in replacement that minimizes downtime, this motor’s direct-on-line starting and durable bearings help reduce maintenance intervals. Certifications include CSA, CSA EEV, and UR marking for safety and compliance across North American markets. With a rated efficiency of 93.60% and a service factor of 1.15, it delivers measurable energy savings and continuous-duty capability. Its 230/460 V, 60 Hz input makes it compatible with common plant power systems, while horizontal foot-mounting supports easy installation.
Product Information
Extended Description
7BEBM4103T ABB: Pump Motor 25 Hp 230 V (EBM4103T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1775RPM,3PH,60HZ,284T,1054M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6309
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM4103T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
10LYF574: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
EBM4103T
Gross Volume
24317.313 in³
Gross Weight
516 lb
Horsepower Rating UL/CSA
25.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
25HP,1775RPM,3PH,60HZ,284T,1054M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Brake, 25 HP, 1800 RPM, Frame Size 284T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EBM4103T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
81 %
Product Name
Brake
Product Net Depth / Length
43.25 in
Product Net Height
21.625 in
Product Net Weight
516 lb
Product Net Width
26 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
62 A | 31 A
Rated Efficiency
93.60 %
Rated Speed
1775 r/min
Replaced Product ID (OLD)
7B10F574Z651G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
25 HP, 1800 RPM, Frame Size 284T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 25 HP rating delivers ample torque for pump and driven systems, enabling reliable startup and sustained flow in water and process applications while maintaining energy efficiency. This directly reduces motor run costs and extends equipment life in demanding operations. The 284T frame with a TEFC enclosure provides a robust, dust- and enclosure-friendly footprint suitable for industrial environments, improving uptime and simplifying compliance with plant installation standards. Premium Efficiency (93.60%) reduces energy consumption by reducing I2R losses, delivering measurable cost savings and favorable return on investment for facilities seeking energy-conscious upgrades. The 230/460 V, 60 Hz, 3-phase configuration ensures compatibility with standard plant power; direct-on-line starting eliminates the need for soft starters in many pump and conveyor applications. A service factor of 1.15 and rated currents of 62 A / 31 A support reliable operation under transient loads, improving process stability and reducing nuisance tripping in critical lines. The brake-equipped design supports load-holding and controlled stopping for equipment like pumps, fans, or conveyors, improving safety and process control during shutdowns. Mounting as a foot-mounted, horizontal (F1) unit simplifies installation and reduces the need for custom mounting hardware, lowering installation time and exposure to alignment issues. Bearings (6311, Ball) and a 1.88 in shaft diameter contribute to long bearing life and robust mechanical performance in continuous-duty services, even under variable loads. The motor’s insulation class (F) and rating for continuous duty enhance reliability in high-temperature environments up to 40 °C and altitudes around 1000 m, supporting consistent performance across multiple sites. Industry-standard design (NEMA Design Code A) ensures straightforward compatibility with compatible PWM drives and energy-reducing accessories for modern plants. Overall, the ABB 7BEBM4103T delivers a balanced combination of efficiency, durability, and installation practicality for pump and process applications in industrial automation.
