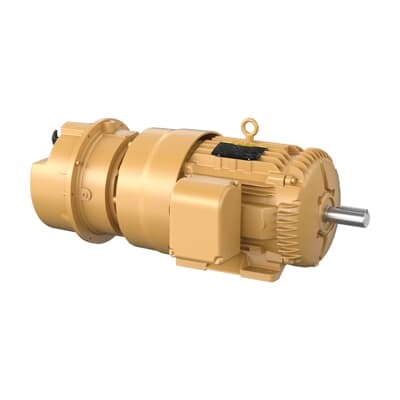

ABB 7BEBM4104T Brake Motor - 1760RPM, 60Hz, TEFC
Part Number: 7BEBM4104T
Quick Summary
ABB 7BEBM4104T brake motor delivers reliable, high-torque drive for pumps and conveyors in demanding industrial settings. Engineers often face downtime due to braking inefficiencies, inadequate enclosure protection, and challenging maintenance. This unit addresses those pains with integrated braking, a rugged TEFC enclosure, and dependable ball bearings for long service life. It carries CSA and UR certifications and adheres to NEMA design expectations, reflecting strong safety and performance credentials. With dual-voltage capability (230/460 V) and a proven 30 HP rating, it supports streamlined procurement while delivering energy-conscious operation and predictable performance on both new installations and retrofits.
Product Information
Extended Description
7BEBM4104T ABB: Pump Motor 30 Hp 230 V (EBM4104T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1760RPM,3PH,60HZ,284T,1056M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6309
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM4104T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
10LYF791: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
EBM4104T
Gross Volume
24317.313 inÂł
Gross Weight
667 lb
Horsepower Rating UL/CSA
30.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
30HP,1760RPM,3PH,60HZ,284T,1056M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Brake, 30 HP, 1800 RPM, Frame Size 284T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EBM4104T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
80 %
Product Name
Brake
Product Net Depth / Length
43.25 in
Product Net Height
21.625 in
Product Net Weight
667 lb
Product Net Width
26 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
76 A | 38 A
Rated Efficiency
93.60 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
30 HP, 1800 RPM, Frame Size 284T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature: Integrated brake provides immediate, reliable stopping and load-holding capability. Business Impact: Enhances safety, reduces mechanical wear, and minimizes downtime during material handling and packaging operations. Application: Conveyor lines and hoists in OEM and aftermarket projects benefit from precise stop control without external braking accessories. Feature: TEFC enclosure delivers robust protection in challenging environments. Business Impact: Lower maintenance needs and longer MTBF in dusty or industrial settings. Application: Factory floor motors and pump systems exposed to ambient contaminants gain sustained performance. Feature: Dual-voltage 230/460 V and 60 Hz operation simplifies electrical wiring and stock management. Business Impact: Reduces spare-part variety, speeds installation, and supports scalable plant modernization. Application: Multi-ratio facilities needing flexible drive solutions for pumps and fans. Feature: Efficiency 93.60% and service factor 1.15 translate to energy savings and reliable overload tolerance. Business Impact: Lower operating costs and greater uptime under varying loads. Application: Continuous-duty motor applications with peak demand fluctuations. Feature: 4-pole, 1760 RPM design with 284T frame and 1.88 in shaft enhances standardization and installation compatibility. Business Impact: Consistent performance across generations and easy mounting in standard bases. Application: Replacements and new builds in industrial pumps and conveyors. Feature: Certifications and standards (CSA, CSA EEV, UR, NEMA) provide regulatory alignment. Business Impact: Simplified compliance workflows, faster approvals, and broader market readiness. Application: Systems requiring certified components for safety and reliability across North American facilities. Together these characteristics support measurable outcomes, including improved system efficiency, reduced spare-part complexity, and accelerated project timelines for industrial automation and electrical components.
