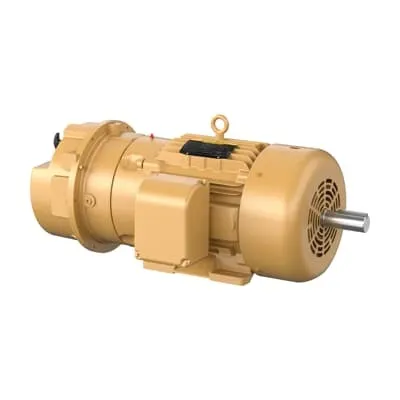

ABB 7BEBM4104TY Brake - 30HP, CSA/UR Certified
Part Number: 7BEBM4104TY
Quick Summary
ABB 7BEBM4104TY Brake is a 30 HP brake for 60 Hz, 3-phase motors, engineered for TEFC frame size 286T in demanding industrial environments. This braking solution reduces motor stall, minimizes wear on mechanical systems, and improves process reliability. By design, it helps minimize downtime and maintenance costs while ensuring precise stopping and hold capabilities. The unit carries CSA EEV and UR certifications for safety and compliance, along with robust performance credentials, supporting efficient procurement and risk management. Stocked across multiple warehouses to support fast fulfillment and predictable project timelines, it’s a practical choice for OEMs and end users seeking a proven brake option with strong regulatory alignment.
Product Information
Extended Description
7BEBM4104TY ABB: Brake 30 Hp 230 V (EBM4104TY)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1760RPM,3PH,60HZ,286T,1056M,TE
Ambient Temperature
40 °C
Bearing
6312, Ball
Bearing NDE
6211
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM4104TY
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
10LYE507: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
EBM4104TY
Gross Volume
24317.313 inÂł
Gross Weight
570 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
30HP,1760RPM,3PH,60HZ,286T,1056M,TEFC,F1
Made To Order
No
Medium Description
Brake, 30 HP, 1800 RPM, Frame Size 286T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EBM4104TY)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
80 %
Product Name
Brake
Product Net Depth / Length
43.25 in
Product Net Height
21.625 in
Product Net Weight
570 lb
Product Net Width
26 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
76 A | 38 A
Rated Efficiency
93.60 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
30 HP, 1800 RPM, Frame Size 286T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: 30 HP brake with 1760 RPM, 60 Hz, 3-phase configuration. Business Impact: Enables reliable stopping and holding with high torque at standard industrial speeds, reducing dynamic wear and improving conveyor or pump control. Application: Suitable for continuous-duty machinery requiring precise brake control without sacrificing uptime. Feature: TEFC enclosure on frame size 286T with dual voltage operation (230 V / 460 V). Business Impact: Delivers rugged protection against dust and moisture while supporting integration with common motor voltages, enabling straightforward installation and retrofit. Application: General purpose industrial motors in harsh environments, including material handling and process lines. Feature: Direct On Line starting, rated current 76 A / 38 A, efficiency 93.60%, service factor 1.15. Business Impact: Fast, efficient starts with predictable current and minimal energy waste, lowering operating costs and improving system responsiveness. Application: Modern factories running high-cycle production lines. Feature: Insulation class F, bearing 6312 ball type, shaft diameter 1.88 in. Business Impact: Enhances thermal stability and longevity under frequent braking cycles, supporting longer service life with lower maintenance. Application: Heavy-duty motors in steel, packaging, and mining equipment. Feature: Certifications (CSA, CSA EEV, UR) and NEMA design code A. Business Impact: Ensures compliance with global safety standards, simplifies procurement audits, and facilitates cross-border deployments. Application: Regulated industries demanding traceable safety compliance and reliable performance. Industry insight: With stock at multiple warehouses and a 0-day lead time for non-custom configurations, distributors can offer rapid response times, minimizing project delays and providing predictable scheduling for capital-intensive installations. This aligns with long-tail keywords like “frame 286T brake,” “60 Hz brake,” and “foot-mounted brake systems.”
