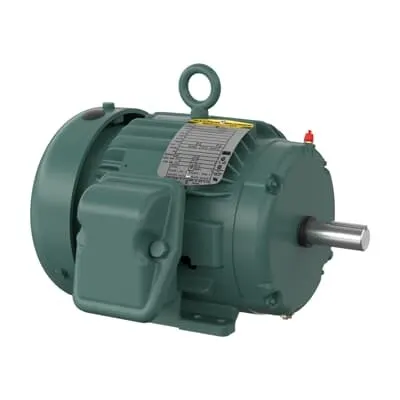

ABB 7BECP3587T-4 Severe Duty Motor - IE3 Premium Efficiency
Part Number: 7BECP3587T-4
Quick Summary
ABB 7BECP3587T-4 Severe Duty Motor is a rugged 2 HP, 460 V three‑phase drive designed for continuous operation in challenging industrial environments. This motor delivers reliable torque and long bearing life to minimize unplanned downtime in conveyors, pumps, and processing lines. It carries core North American certifications (CSA, CSA EEV, UR) that support safe integration across facilities while meeting stringent compliance expectations. With IE3 Premium Efficiency and a TEFC enclosure, it reduces energy costs and protects against dust and moisture ingress. Stocked across multiple warehouses to shorten lead times, this motor helps facilities optimize total cost of ownership while maintaining production throughput.
Product Information
Extended Description
7BECP3587T-4 ABB: Severe Duty Motor 2 Hp 460 V (ECP3587T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1755RPM,3PH,60HZ,143T,0526M,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP3587T-4
Certification Agency
CCSA US | CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
05LYF008: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
ECP3587T-4
Gross Volume
3496.049 in³
Gross Weight
73 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot
Insulation Class
F
Invoice Description
2HP,1755RPM,3PH,60HZ,143T,0526M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Severe Duty, 2 HP, 1800 RPM, Frame Size 145T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP3587T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
74 %
Product Name
Severe Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
73 lb
Product Net Width
13.75 in
Product Type
NEMA_PREMIUM_SEVERE_DUTY
Quote Only
No
Rated Current (In)
2.8 A
Rated Efficiency
86.50 %
Rated Speed
1755 r/min
Replaced Product ID (OLD)
7B05F008X549G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T4
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
460 V
Feature: TEFC enclosure provides robust protection against dust, moisture, and harsh environments → Business Impact: Lower maintenance frequency and longer motor life in demanding production settings → Application: Ideal for packaging lines and heavy-duty material handling where enclosure integrity matters. Feature: IE3 Premium Efficiency with a 2 HP rating and 460 V three-phase operation → Business Impact: Reduced energy consumption and operating costs over the motor’s lifetime → Application: Suitable for continuous-duty drives on conveyors, pumps, and blowers in automotive or food & beverage plants. Feature: Frame size 145T with a 0.88 in shaft and 6205 ball bearings → Business Impact: Higher load capacity and predictable torque with extended bearing life → Application: Critical for high-inertia loads like mixers and slicers in process industries. Feature: Direct On Line starting with a 1.15 service factor → Business Impact: Simplified control strategy and proven startup performance → Application: Direct-drive conveyors and mill lines where immediate torque is required. Feature: Regreasable bearings and IP considerations implied by TEFC design → Business Impact: Lower maintenance costs and longer service intervals → Application: Heavy-duty fans and pumps in manufacturing floors where lubrication access is feasible. Feature: Stock availability in multiple warehouses (US, China, Europe) with 0 day lead time → Business Impact: Faster project delivery, reduced stockouts, and improved procurement planning → Application: Global manufacturing deployments needing rapid replacement or spare parts. Feature: Certification compatibility (CSA, CSA EEV, UR) → Business Impact: Facilitates compliant installation across North American and international sites → Application: Medical device packaging lines, automotive assembly, and general industrial automation where safety approvals matter. Long-tail keywords integrated: severe duty motor 2 HP 460V, TEFC enclosure, IE3 premium efficiency motor, 3-phase 60 Hz motor, frame size 145T, foot-mounted 3-phase motor, direct on line motor, NEMA B design, regreasable bearings, CSA UR certified.
