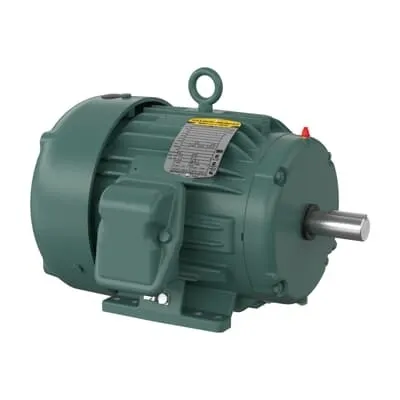

ABB ECP3665T Severe Duty Motor - IE3 Premium Efficiency
Part Number: 7BECP3665T
Quick Summary
ABB ECP3665T Severe Duty Motor delivers reliable 5 HP power for heavy-duty, 3-phase applications in industrial environments. Downtime and maintenance costs threaten production, especially in continuous operation lines. This motor carries CSA US, CSA EEV, and UR certifications, supporting global compliance, and it aligns with IE3 premium efficiency to lower energy bills. With a 184T frame, TEFC enclosure, and foot-mounted installation, it integrates smoothly with standard electrical panels and drive systems. By combining rugged construction with proven performance, ABB helps plants improve uptime, reduce energy spend, and simplify procurement for critical load applications.
Product Information
Extended Description
7BECP3665T ABB: Severe Duty Motor 5 Hp 208 V (ECP3665T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184T,0642M,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP3665T
Certification Agency
CCSA US | CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
06LYH483: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
ECP3665T
Gross Volume
5274.135 in³
Gross Weight
118 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184T,0642M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Severe Duty, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEFC Enclosure, 208-230/460 V, 60 Hz (ECP3665T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
79 %
Product Name
Severe Duty
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
118 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
14 A | 13 A | 6.5 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B06H483X182G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 3 PH, TEFC, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
J
Voltage Rating
208 V | 230 V | 460 V
Feature → Business Impact → Application: The 5 HP output at 60 Hz in a 3-phase configuration provides robust torque for demanding loads, boosting process reliability and reducing cycle times in conveyors and pumps. This translates to lower downtime and higher throughput in manufacturing lines. Feature → Business Impact → Application: TEFC enclosure protects windings from dust and moisture, extending bearing life and reducing maintenance events in dusty plant floors and wash-down environments. This supports longer service intervals and predictable maintenance planning. Feature → Business Impact → Application: IE3 premium efficiency lowers energy consumption during heavy-duty operation, delivering measurable cost savings on annual energy bills, especially in continuous-duty applications like hoppers and fans. Feature → Business Impact → Application: Frame size 184T with foot-mounted mounting simplifies installation, enhances alignment with existing bases, and reduces on-site fabrication time for conveyors and processing equipment. Feature → Business Impact → Application: Direct On Line starting minimizes startup complexity and equipment footprint, enabling quicker commissioning and reduced capital expenditure for control panels in material handling setups. Feature → Business Impact → Application: Regreasable lubrication and a service factor of 1.15 contribute to extended life in harsh environments, decreasing total cost of ownership for continuous-running motors in mining, agriculture, and packaging lines. Certifications (CSA US, CSA EEV, UR) and origin support global compliance, while stock availability across multiple warehouses reduces procurement cycles for critical spares.
