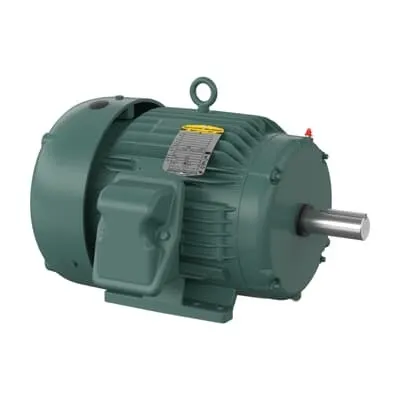

ABB ECP3772T-4 Severe Duty Motor - 2 HP, 460V, TEFC
Part Number: 7BECP3772T-4
Quick Summary
ABB ECP3772T-4 Severe Duty Motor powers demanding industrial equipment with reliable 2 HP performance in 3-phase, 460 V systems. Operators contend with heat, vibration, and downtime, and this motor is engineered to endure harsh environments with a robust TEFC enclosure and reinforced bearings. It carries certifications such as NEMA Premium Efficiency, CSA, CSA EEV, and UR, helping facilities meet energy and safety requirements across U.S. and international operations. With a 213T frame, foot-mounted configuration, and direct-on-line starting, it integrates seamlessly into existing lines, delivering measurable cost savings, improved uptime, and simpler maintenance planning for OEMs and service teams alike. This motor is well-suited for pumps, fans, and conveyors in continuous-duty applications.
Product Information
Extended Description
7BECP3772T-4 ABB: Severe Duty Motor 2 Hp 460 V (ECP3772T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,865RPM,3PH,60HZ,213T,0732M,TEFC
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6307
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP3772T-4
Certification Agency
CCSA US | CSA | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
07LYK374: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
ECP3772T-4
Gross Volume
9144.346 in³
Gross Weight
179 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,865RPM,3PH,60HZ,213T,0732M,TEFC,F1,N
Lubrication
Regreasable
Made To Order
No
Maximum Speed
1350 r/min
Medium Description
Severe Duty, 2 HP, 900 RPM, Frame Size 213T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP3772T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
8P
Number of Poles (High)
8
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
57 %
Product Name
Severe Duty
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
179 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.8 A
Rated Efficiency
85.50 %
Rated Speed
865 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
2 HP, 900 RPM, Frame Size 213T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
900 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
H
Voltage Rating
460 V
Feature: 2 HP, 865 r/min, 8-pole design in a 213T frame powers steady torque in 3-phase, 460 V systems. Business Impact: stable performance and predictable operation reduce process variability and maintenance costs. Application: ideal for pumps, fans, and conveyors in manufacturing lines requiring reliable uptime. Feature: TEFC enclosure with iron frame and robust bearings supports harsh environments. Business Impact: protection against dust, moisture and contamination translates to longer service intervals and lower warranty exposure. Application: suitable for packaging, mining, and outdoor or damp facilities. Feature: Premium Efficiency (NEMA), Insulation Class F, and NEMA Design B. Business Impact: energy savings, lower operating costs, and compliance with energy codes. Application: OEM equipment and retrofits seeking cost-effective, efficient motors. Feature: Direct on Line starting and 60-minute duty rating. Business Impact: simple start-ups, reduced soft-start requirements, and dependable continuous operation. Application: conveying and pumping systems with frequent restarts or steady loads. Feature: Foot mounted, horizontal mounting with 213T frame and 1.38 in shaft diameter. Business Impact: easy retrofit, straightforward alignment, and broad compatibility with existing bases. Application: factory floors and equipment retrofits where common base plates exist. Feature: Stocked at multiple warehouses with 0 day lead time. Business Impact: rapid procurement and minimized downtime for critical maintenance. Application: maintenance planning and OEM supply chains seeking fast delivery.
