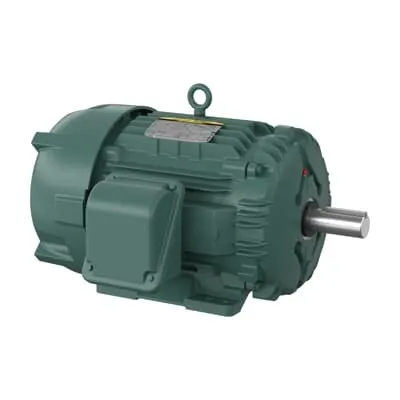

ABB 7BECP4104T-5 Severe Duty Motor - NEMA Premium
Part Number: 7BECP4104T-5
Quick Summary
Severe Duty Motor ABB 7BECP4104T-5 delivers high-efficiency, reliable torque for demanding industrial applications such as pumps, conveyors, and metal processing. This design minimizes downtime and maintenance costs in harsh environments, helping operators maximize uptime. Certified for NEMA Premium efficiency, CSA EEV, and UR marking, the motor also features a TEFC enclosure and 575 V, 60 Hz operation, ensuring robust performance across a wide range of installations. With stock readily available across multiple warehouses, it enables faster project ramp-up while delivering energy savings and predictable maintenance planning for electrical system integrators and maintenance teams.
Product Information
Extended Description
7BECP4104T-5 ABB: Severe Duty Motor 30 Hp 575 V (ECP4104T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1770RPM,3PH,60HZ,286T,1060M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP4104T-5
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
10LYH292: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
ECP4104T-5
Gross Volume
16254 in³
Gross Weight
485 lb
Horsepower Rating UL/CSA
30.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
30HP,1770RPM,3PH,60HZ,286T,1060M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Severe Duty, 30 HP, 1800 RPM, Frame Size 286T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (ECP4104T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
83 %
Product Name
Severe Duty
Product Net Depth / Length
31.5 in
Product Net Height
21.5 in
Product Net Weight
485 lb
Product Net Width
24 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
29 A
Rated Efficiency
93.60 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
30 HP, 1800 RPM, Frame Size 286T, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
H
Voltage Rating
575 V
Feature → Business Impact → Application: TEFC enclosure provides a completely enclosed, dust- and moisture-resistant housing, reducing ingress-related wear and extending bearing life in dirty or humid production areas. This translates to lower maintenance cost per hour of operation and improved line availability for food & beverage, metals, or chemical processing lines. Feature → Application: 286T frame, 1.88 in shaft diameter, and foot-mounted base type simplify retrofit and replacement projects, enabling quick installations alongside existing bases and couplings in conveyor drives and pump assemblies. Feature → Business Impact → Application: Premium efficiency (approx. 93.6%) supports lower energy costs and cooler operation, decreasing cooling load for electrical systems and reducing total cost of ownership in continuous-process environments like mining, water treatment, or milling. Feature → Application: TEFC, 60 Hz, 575 V, 4-pole design delivers reliable performance with direct-on-line starting, reducing control panel complexity and switchgear sizing for OEMs and integrators in high-demand applications. Feature → Business Impact → Application: 30 HP rating with a 1770 r/min operating speed and 1.15 service factor delivers strong torque at start-up and steady-state operation, improving motor-driven equipment performance in presses, mixers, and fans while supporting compliance with NEMA and CSA standards. Feature → Application: Regreasable bearings (6311) and robust construction support long service intervals, lowering maintenance windows and downtime during peak production cycles in steel rolling, pulp & paper, and plastics extrusion. Feature → Business Impact → Application: Stocked At Warehouses and 0-day Lead Time enable rapid procurement, minimizing project delays and enabling just-in-time deployment for multi-site installations and OEM programs.
Get a Quick Quote for a ABB 7BECP4104T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECP4104T-5?
Enquire Now
FAQs
The motor is foot-mounted with a horizontal mounting orientation (F1) and a TEFC enclosure, designed for easy retrofit into existing 286T frames. It supports direct-on-line starting and a 575 V, 60 Hz three-phase supply, ensuring compatibility with standard plant electrical infrastructure.
Key specs include 30 HP output, 575 V, 60 Hz, 1770 r/min rated speed (synchronous 1800 r/min), 4-pole design, 1.15 service factor, shaft diameter 1.88 in, and a premium efficiency rating of 93.6%. The motor uses TEFC enclosure and 6311 ball bearings for longevity.
Yes. The TEFC enclosure, premium efficiency, and robust construction support continuous duty in challenging settings such as conveyors, pumps, and fans in dusty or humid facilities. Rated for 40 °C ambient conditions and up to 1000 m altitude, it is well-suited for industrial plants.
It carries NEMA Premium efficiency, CSA EEV, UR (Underwriters) certification, and CCSA US recognition, ensuring compliance for North American electrical systems and reliability for regulated environments.
With regreasable bearings and a readily available stock footprint across multiple warehouses, downtime is minimized, and maintenance windows are reduced. The 0-day lead time supports fast procurement, improving project ROI and uptime in multi-site deployments.
