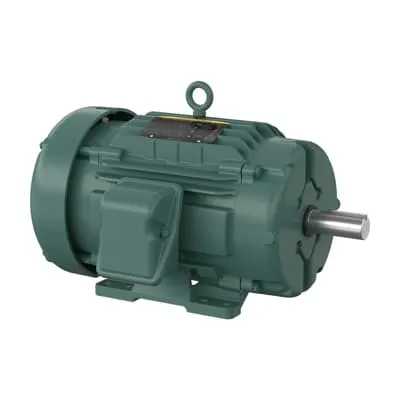

ABB 7BECP4106T-5 Severe Duty Motor - 575V TEFC
Part Number: 7BECP4106T-5
Quick Summary
ABB 7BECP4106T-5 Severe Duty Motor is a 20 HP, 575 V three-phase motor designed for continuous operation in demanding industrial environments. This model helps combat downtime and reliability challenges by combining a rugged 256T frame, precise bearings, and a durable TEFC enclosure that withstands dust, moisture, and harsh conditions. With NEMA design B characteristics and premium efficiency, it maintains performance across variable loads at 60 Hz. CSA/UR/EEV listings further support regulatory compliance for critical facilities. The motor's foot-mounted, horizontal F1 configuration simplifies installation and retrofit into existing equipment. For OEMs and maintenance teams, the solution offers predictable lifecycle costs, consistent torque, and fast field service, without sacrificing safety or energy performance.
Product Information
Extended Description
7BECP4106T-5 ABB: Severe Duty Motor 20 Hp 575 V (ECP4106T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,3510RPM,3PH,60HZ,256T,0954M,TE
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP4106T-5
Certification Agency
CCSA US | CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
09LYJ371: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
ECP4106T-5
Gross Volume
14448.906 in³
Gross Weight
140.614 kg
Horsepower Rating UL/CSA
20.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
20HP,3510RPM,3PH,60HZ,256T,0954M,TEFC,F1
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
Severe Duty, 20 HP, 3600 RPM, Frame Size 256T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (ECP4106T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
91 %
Product Name
Severe Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
140.614 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
17.9 A
Rated Efficiency
91 %
Rated Speed
3510 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
20 HP, 3600 RPM, Frame Size 256T, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
575 V
Severe Duty design pairs a 20 HP, 575 V three-phase rating with a TEFC enclosure for rugged reliability in harsh environments. This combination delivers consistent torque and reduced maintenance across long runtimes, helping facilities meet uptime targets in continuous-duty tasks such as pumps, fans, and conveyors. The 256T frame, foot-mounted base, and horizontal mounting orientation simplify retrofit and installation, minimizing mechanical changes and enabling faster commissioning. Efficiency and performance: The motor achieves 91% efficiency and a 1.15 service factor, enabling energy savings during normal operation and headroom for transient loads. With 60 Hz and 575 V supply, it aligns with standard plant electrical infrastructure, reducing wiring complexity and control hardware. The direct-on-line starting capability supports quick starts without elaborate soft-start gear, improving startup reliability in busy manufacturing lines. Reliability and longevity: Premium insulation class F, 6309 ball bearings, and a robust iron frame reinforce thermal stability and long service life under continuous duty. The TEFC enclosure protects against dust, moisture, and light chemical exposure, reducing lubrication needs and maintenance cycles. The 1.63 in shaft diameter and stout mounting pattern help absorb misalignment and shocks common in heavy-load conveyors and pumps. Compliance and field readiness: NEMA design B torque characteristics support smooth starts under load, while CSA US/EEV/UR listings provide regulatory confidence for critical facilities. The motor is designed for straightforward maintenance with widely available spare parts and standard lubrication, helping procurement and maintenance teams optimize total cost of ownership in industries like water treatment, mining, and food processing.
Get a Quick Quote for a ABB 7BECP4106T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECP4106T-5?
Enquire Now
FAQs
Yes. The model is designed for 575 V three-phase systems at 60 Hz and uses a 256T frame. It features a foot-mounted, horizontal F1 mounting configuration for straightforward retrofit or new-installation integration, with direct-on-line starting for fast commissioning.
The motor delivers 91% efficiency and a service factor of 1.15, providing reliable torque with energy savings under normal operation and headroom for transient loads. Rated at 60 Hz and 575 V, it aligns with standard plant power and reduces control complexity.
Yes. The TEFC enclosure and 40 °C ambient rating support operation in dusty or humid environments. With the 256T frame and rugged bearings, it is well suited for pumps, conveyors, and fans in mining, water treatment, and manufacturing settings.
The motor carries CSA US, CSA EEV, and UR listings and adheres to NEMA design B standards, with insulation class F for thermal resilience. These certifications simplify procurement and compliance for critical facilities.
Long bearing life (6309 Ball) and a robust iron frame reduce maintenance cycles, while the DOL starting minimizes drive hardware needs. This combination lowers downtime, lowers energy costs, and improves total cost of ownership across plant operations.
