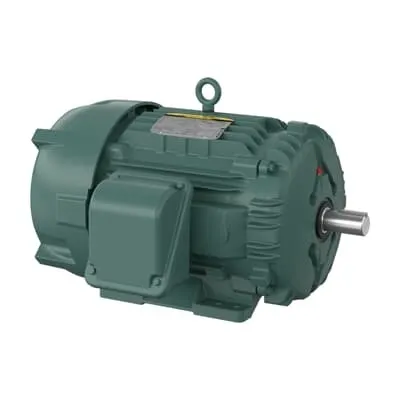

ABB 7BECP4107T-4 Severe Duty Motor - TEFC 460V
Part Number: 7BECP4107T-4
Quick Summary
ABB 7BECP4107T-4 Severe Duty Motor is designed for demanding industrial drives, delivering reliable 25 HP performance at 460 V in a TEFC enclosure for continuous operation. This motor suits pumps, fans, and conveyors in harsh environments where uptime is essential. It features Premium Efficiency ratings, NEMA design code B, and a robust 284TS frame to meet heavy-duty duty cycles while controlling energy costs. By combining high reliability with stock availability across multiple warehouses, this solution reduces procurement lead times and maintenance needs, helping engineering teams meet reliability targets and total cost of ownership goals.
Product Information
Extended Description
7BECP4107T-4 ABB: Severe Duty Motor 25 Hp 460 V (ECP4107T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,3520RPM,3PH,60HZ,284TS,1048M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP4107T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
10LYH423: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
ECP4107T-4
Gross Volume
14448.906 in³
Gross Weight
342 lb
Horsepower Rating UL/CSA
25.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot
Insulation Class
F
Invoice Description
25HP,3520RPM,3PH,60HZ,284TS,1048M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
Severe Duty, 25 HP, 3600 RPM, Frame Size 284Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP4107T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
90 %
Product Name
Severe Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
342 lb
Product Net Width
23.75 in
Product Type
NEMA_PREMIUM_SEVERE_DUTY
Quote Only
No
Rated Current (In)
28 A
Rated Efficiency
91.70 %
Rated Speed
3520 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
25 HP, 3600 RPM, Frame Size 284Ts, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
J
Voltage Rating
460 V
Feature → Business Impact → Application: The TEFC enclosure and 284TS frame provide robust protection against dust, moisture, and temperature swings, resulting in significantly lower downtime and longer bearing life. This is critical for pumps and conveyors in mining, chemical processing, and heavy-duty material handling where operating conditions are less than ideal. Feature → Business Impact → Application: Premium Efficiency (91.70%) reduces energy consumption and heat generation, delivering measurable savings on operating costs and improved thermal performance for continuous-duty fans and pumps in chemical plants. Feature → Business Impact → Application: Service Factor of 1.15 enables short overloads without derating, supporting startup surges and transient loads in grinding mills or filtration systems. Feature → Business Impact → Application: 3-phase 460 V operation with a 60 Hz frequency aligns with common plant power distribution, simplifying electrical design and enabling direct-on-line starting for compact drives in bottling lines and packaging equipment. Feature → Business Impact → Application: Foot-mounted, horizontal orientation with a 1.63 in shaft and TEFC enclosure eases installation, retrofit, and maintenance in legacy systems, benefiting OEMs and maintenance teams with shorter commissioning times and reduced downtime. Feature → Business Impact → Application: Stocked at multiple warehouses (US, DE, CN) and 0-day lead time support fast project deployment and spare-part availability for critical heavy-duty motor applications.
