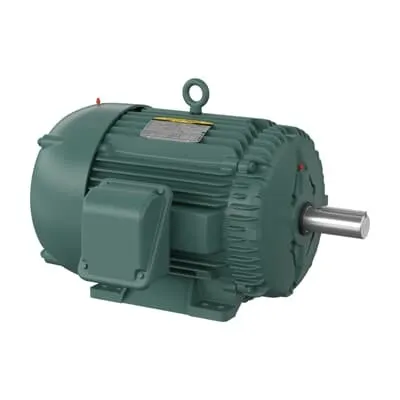

ABB 7BECP4115T-4 Severe Duty Motor - NEMA Premium
Part Number: 7BECP4115T-4
Quick Summary
ABB 7BECP4115T-4 Severe Duty Motor delivers reliable, high-efficiency 50 HP propulsion for heavy-duty conveyors and processing lines. In harsh industrial settings, uptime matters more than initial cost, and unplanned outages can disrupt production and budgets. It carries critical certifications such as NEMA Premium efficiency, CSA EEV, and UR listings, supporting compliance across North American facilities. This motor is designed to streamline procurement and maintenance with fast availability—0 day lead time—while offering TEFC protection and compatibility with 460 V three-phase power, enabling seamless integration into existing automation architectures and long-term ownership. Together with a robust design and global stocking, it supports scalable deployment for evolving manufacturing operations.
Product Information
Extended Description
7BECP4115T-4 ABB: Severe Duty Motor 50 Hp 460 V (ECP4115T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,1775RPM,3PH,60HZ,326T,1272M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312, Ball
Bearing NDE
6312
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP4115T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
12LYF904: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
ECP4115T-4
Gross Volume
18748.226 in³
Gross Weight
668 lb
Horsepower Rating UL/CSA
50.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot
Insulation Class
F
Invoice Description
50HP,1775RPM,3PH,60HZ,326T,1272M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Severe Duty, 50 HP, 1800 RPM, Frame Size 326T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP4115T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
85 %
Product Name
Severe Duty
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
668 lb
Product Net Width
25.688 in
Product Type
NEMA_PREMIUM_SEVERE_DUTY
Quote Only
No
Rated Current (In)
58 A
Rated Efficiency
94.50 %
Rated Speed
1775 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.13 in
Short Description
50 HP, 1800 RPM, Frame Size 326T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
H
Voltage Rating
460 V
Feature: 50 HP, 460 V three-phase specifications in a 326T frame. Business Impact: delivers strong starting torque and energy-efficient performance, reducing power costs in continuous-duty operations. Application: ideal for conveyors, pumps, and mixers in metalworking and material handling environments. Feature: TEFC enclosure and high-strength iron frame. Business Impact: protects windings from dust, moisture, and harsh conditions, increasing mean time between failures. Application: cement, mining, and bulk material handling where enclosure protection matters. Feature: NEMA Premium efficiency and insulation class F. Business Impact: lowers energy consumption and thermal wear while extending motor life under elevated ambient temperatures. Application: high-demand automation lines demanding reliable uptime. Feature: Regreasable lubrication and maintenance-friendly design. Business Impact: reduces maintenance frequency and spare-part costs, improving total cost of ownership. Application: remote facilities and high-cycle workflows where maintenance windows are limited. Feature: Direct-on-line starting and robust mechanical compatibility (foot-mounted, horizontal, F1). Business Impact: simplifies electrical infrastructure, lowers starter hardware costs, and speeds installation. Application: new builds and retrofit projects across production lines needing quick deployment. Feature: 60 Hz operation with 40 °C ambient rating and 1000 m altitude tolerance. Business Impact: ensures consistent torque and performance in diverse sites, improving project reliability. Application: automotive, packaging, and processing plants with regional temperature variations. Industry context note: This motor’s combination of 50 HP, 460 V, 326T frame, and TEFC construction aligns with common industrial automation scenarios, delivering measurable efficiency gains and dependable operation for long-term ROI.
Get a Quick Quote for a ABB 7BECP4115T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECP4115T-4?
Enquire Now
FAQs
Yes. The 7BECP4115T-4 is a 460 V three-phase motor with a TEFC enclosure designed for direct-on-line starting. Its 326T frame and foot-mounted mounting orientation simplify retrofits and new installations in typical industrial plants, while ensuring compatibility with standard VFDs or direct mains supply depending on the control scheme.
The motor delivers 50 HP with a rated current of 58 A and an efficiency of 94.5% (Premium Efficiency). It operates at 60 Hz with a rated speed of 1775 r/min, and a service factor of 1.15, supporting reliable performance under continuous duty in demanding processes.
Absolutely. The Severe Duty configuration (326T frame, TEFC, 60 Hz, 460 V) is ideal for continuous-duty conveyors, pumps, and material-handling equipment. The robust enclosure and shaft design support high-torque starts and sustained operation in harsh environments common in metal fabrication and packaging lines.
This motor carries NEMA Premium efficiency, CSA EEV, and UR (Underwriters) listings, with CSA US certification noted. These certifications support regulatory compliance and reliability in North American facilities, simplifying audits and procurement qualification.
Maintenance is streamlined by regreasable lubrication and a durable iron frame, reducing downtime and service intervals. With fast 0-day lead times and broad warehouse stocking, total cost of ownership improves through lower emergency maintenance costs and quicker project commissioning, delivering faster return on investment.
