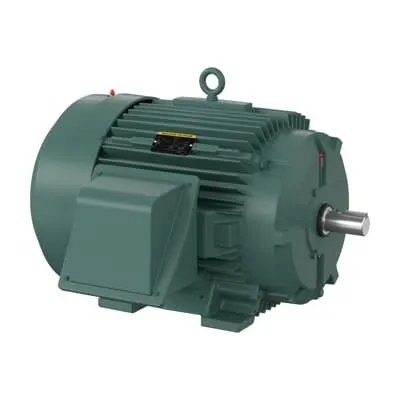

ABB 7BECP4313T Motor - 75 HP TEFC, CSA EEV Certification
Part Number: 7BECP4313T
Quick Summary
ABB 7BECP4313T Motor is a severe-duty, 75 HP, 460 V three-phase solution designed for demanding industrial applications such as pumps, compressors, and conveyor systems. This robust TEFC motor delivers reliable performance in continuous duty environments while minimizing maintenance cycles. By leveraging premium efficiency and a durable iron frame, it reduces energy cost and downtime in your production line. The motor is US-origin, stocked in multiple warehouses, and backed by clear warranty terms and stock-led delivery. With CSA EEV and UR certifications, you gain regulatory confidence and safer operations, while the robust design supports long service intervals. For engineers seeking predictable performance and faster procurement, this model offers compelling total-cost-of-ownership benefits.
Product Information
Extended Description
7BECP4313T ABB: Severe Duty Motor 75 Hp 460 V (ECP4313T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,3555RPM,3PH,60HZ,365TS,A36068M
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313 | Ball
Bearing NDE
6313 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP4313T
Certification Agency
CCSA US | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
A36C-0000000077
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
365
Frequency (f)
60 Hz
Global Commercial Alias
ECP4313T
Gross Volume
33833.008 in³
Gross Weight
915 lb
Horsepower Rating UL/CSA
75.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
75HP,3555RPM,3PH,60HZ,365TS,A36068M,TEFC
Lubrication
Regreasable
Made To Order
No
Maximum Speed
4500 r/min
Medium Description
Severe Duty, 75 HP, 3600 RPM, Frame Size 365Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (ECP4313T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
92 %
Product Name
Severe Duty
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
915 lb
Product Net Width
32.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
161 A | 80.7 A
Rated Efficiency
93.60 %
Rated Speed
3555 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
75 HP, 3600 RPM, Frame Size 365Ts, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
F
Voltage Rating
460 V
Feature: Severe-duty design and 365TS frame provide rugged reliability in harsh environments. Business Impact: Prolonged service life, lower replacement frequency, and reduced unscheduled downtime in demanding industries like mining, chemical processing, and heavy manufacturing. Application: Suitable for continuous-duty fans, pumps, and conveyors where uptime is critical. Feature: TEFC enclosure and 460 V, 60 Hz, 3-phase operation. Business Impact: Enhanced protection against dust and moisture, improved compatibility with standard industrial power systems, and straightforward installation. Application: Industrial plants with dusty floors or outdoor equipment where protection and reliability are paramount. Feature: Premium efficiency (IE class) and service factor 1.15. Business Impact: Lower energy costs and higher torque reserve for start-up loads, contributing to a lower total cost of ownership. Application: Air handling systems, pumps, and other load profiles with frequent start/stop cycles. Feature: Direct On Line starting and foot-mounted (F1) configuration. Business Impact: Simplified controls, faster commissioning, and easier maintenance. Application: Inline pumps, centrifugal fans, and material-handling equipment where space is constrained and mechanical alignment matters. Feature: Stocked at multiple warehouses with zero-day lead time. Business Impact: Rapid procurement, reduced project timelines, and improved supply chain resilience. Application: Critical manufacturing, OEM integration, and turnkey installations requiring fast delivery. Industry-specific context: The 365TS frame size pairs with a robust 1.15 service factor and 93.6% rated efficiency, aligning with typical plant maintenance budgets and energy-reduction targets while meeting NEMA design B expectations for general-purpose motor duty.
