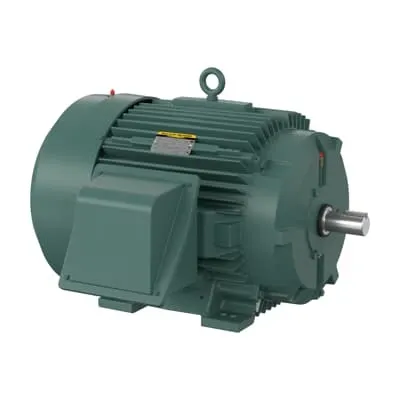

ABB 7BECP4313T-5 Severe Duty Motor - TEFC, CSA EEV
Part Number: 7BECP4313T-5
Quick Summary
ABB 7BECP4313T-5 Severe Duty Motor delivers 75 HP power for demanding, 3-phase applications in 575 V industrial drives. Engineers often face downtime, high maintenance costs, and energy waste in harsh environments; this motor is designed to reduce those risks while delivering consistent performance. It features Premium Efficiency with a TEFC enclosure and CSA EEV certification for regulatory compliance, ensuring reliability across North American and global facilities. By combining robust construction with stock availability from multiple warehouses, it supports OEMs and service teams with faster onboarding, reduced lead times, and improved total cost of ownership in heavy industrial settings.
Product Information
Extended Description
7BECP4313T-5 ABB: Severe Duty Motor 75 Hp 575 V (ECP4313T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1
Ambient Temperature
40 °C
Bearing
6313 | Ball
Bearing NDE
6313 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP4313T-5
Certification Agency
CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
617428-298: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
365
Frequency (f)
60 Hz
Global Commercial Alias
ECP4313T-5
Gross Volume
41624.5 in³
Gross Weight
444.067 kg
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1
Made To Order
No
Medium Description
Severe Duty, 75 HP, 3600 RPM, Frame Size 365Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (ECP4313T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
92 %
Product Name
Severe Duty
Product Net Depth / Length
41.5 in
Product Net Height
29.5 in
Product Net Weight
444.067 kg
Product Net Width
34 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
65.5 A
Rated Efficiency
93.60 %
Rated Speed
3555 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
75 HP, 3600 RPM, Frame Size 365Ts, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
575 V
Feature → Business Impact → Application: The 75 HP, 2-pole motor delivers strong torque and precise speed control for high-demand loads, reducing cycle times in conveyors and pumps. This translates to measurable production throughput gains and lower energy waste in continuous processes. The TEFC enclosure protects internal windings from dust, moisture, and debris, minimizing unscheduled downtime in dusty or humid industrial environments, while simplifying maintenance routines and extending service intervals. Premium Efficiency (93.60 %) lowers operating costs on energy-intensive lines, supporting compliance with efficiency mandates and reducing kWh consumption over the motor’s life. The 365TS frame with foot mounting enables straightforward installation and retrofit compatibility with existing bases, facilitating fast integration in OEM equipment or modernizations. A 1.15 service factor enhances reliability under short overloads common in start-up and peak-load conditions, protecting equipment from surges and fan or pump stalls. Stocked at multiple warehouses (US, China, etc.) and listed with 0-day lead time in supplier networks, it minimizes downtime and accelerates project timelines for facilities upgrading legacy drives or expanding capacity.
Get a Quick Quote for a ABB 7BECP4313T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECP4313T-5?
Enquire Now
FAQs
This 365TS frame, foot-mounted motor uses a TEFC enclosure and 2-pole design for standard VPI bases. It fits typical industrial drive installations and OEM equipment with compatible mounting footprints, enabling straightforward retrofits and quick commissioning.
Key specs include 75 HP output, 575 V voltage rating, 60 Hz frequency, 3555 r/min nominal speed, 1.15 service factor, 65.5 A rated current, and Premium Efficiency. It is a 3-phase, NEMA design B motor with TEFC enclosure and shaft diameter of 1.88 inches.
Yes. The motor is designed for continuous duty with a 1.15 service factor, 3-phase operation, and a robust TEFC enclosure, making it well-suited for conveyors, pumps, and processing equipment that run continuously or with frequent start/stop cycles.
The motor carries CSA EEV certification and Premium Efficiency labeling (NEMA baseline). These certifications assure regulatory compliance, energy performance, and reliability across North American facilities, aiding in safety approvals, sustainability reporting, and supplier qualification matrices.
Energy savings from Premium Efficiency, reduced downtime thanks to a rugged TEFC enclosure, and faster procurement from stocked warehouses combine to shorten payback periods. The motor’s compatibility with standard bases and its robust construction support lower maintenance costs over the asset’s life.
