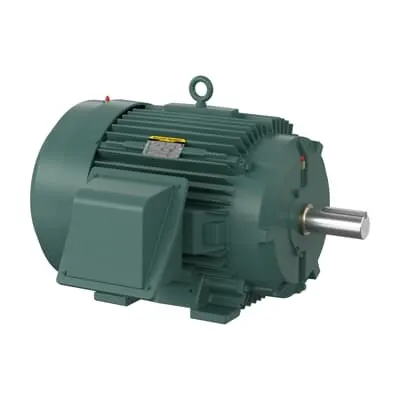

ABB 7BECP4316TR-4 Severe Duty Motor - CSA EEV
Part Number: 7BECP4316TR-4
Quick Summary
7BECP4316TR-4 is a severe-duty motor delivering reliable 75 HP at 460 V for demanding industrial drives. This ABB design targets uptime and resilience in harsh environments, reducing unplanned outages and maintenance costs. With certifications including CSA EEV and adherence to NEMA standards, the motor offers robust performance in continuous-duty applications. Operators gain energy efficiency, straightforward installation, and a footprint aligned with standard 365T frame equipment, delivering tangible business value in heavy industry settings.
Product Information
Extended Description
7BECP4316TR-4 ABB: Severe Duty Motor 75 Hp 460 V (ECP4316TR-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1780RPM,3PH,60HZ,365T,TEFC,F1
Ambient Temperature
40 °C
Bearing
NU313, Roller
Bearing NDE
6313
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP4316TR-4
Certification Agency
CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
611740-501-SH1: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
365
Frequency (f)
60 Hz
Global Commercial Alias
ECP4316TR-4
Gross Volume
42236.625 in³
Gross Weight
434.541 kg
Horsepower Rating UL/CSA
75.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
75HP,1780RPM,3PH,60HZ,365T,TEFC,F1
Made To Order
No
Medium Description
Severe Duty, 75 HP, 1800 RPM, Frame Size 365T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP4316TR-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
86 %
Product Name
Severe Duty
Product Net Depth / Length
41.5 in
Product Net Height
29.5 in
Product Net Weight
434.541 kg
Product Net Width
34.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
85.9 A
Rated Efficiency
95.40 %
Rated Speed
1780 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.37 in
Short Description
75 HP, 1800 RPM, Frame Size 365T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
Feature → Business Impact → Application: The 365T frame with foot-mounted, horizontal mounting (F1) provides a familiar, plug-and-play footprint that minimizes installation time and vibration risks in conveyors, pumps, and fans. This translates to faster line startup and lower commissioning costs for plant upgrades. Feature → Business Impact → Application: TEFC enclosure and Direct On Line starting simplify lubrication, enclosure protection, and electrical integration, reducing maintenance intervals while supporting reliable operation in dirty or dusty environments typical of manufacturing and processing facilities. Feature → Business Impact → Application: 3-phase, 4-pole design at 1780 r/min with 460 V and 60 Hz delivers consistent torque and predictable speed control, enabling precise process control in mixers, blowers, and material handling systems. Feature → Business Impact → Application: Premium efficiency and a 1.15 service factor enable energy savings and headroom for transient loads, lowering operating costs over the motor’s life and improving overall plant reliability in continuous-duty applications. Feature → Business Impact → Application: NU313 bearings and a 40 °C ambient rating support long bearing life and reduced maintenance surprises, essential for remote locations or mission-critical equipment in mining, water treatment, and chemical processing. Feature → Business Impact → Application: Stocked at multiple warehouses with 0 day lead time, ensuring rapid procurement and minimal downtime during line changes or expansions in industrial facilities that rely on ABB reliability and support.
