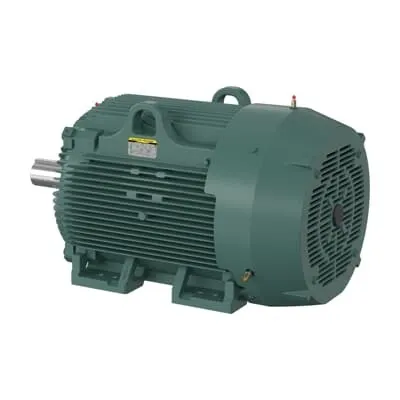

ABB 7BECP4410TR-4 Severe Duty Motor - 125 HP, 460 V TEFC
Part Number: 7BECP4410TR-4
Quick Summary
ABB 7BECP4410TR-4 is a severe-duty motor designed to deliver reliable 125 HP performance in demanding industrial drives. It supports heavy loads and continuous operation in 460 V three-phase systems, making it suitable for conveyors, pumps, and processing equipment. This motor helps minimize downtime by combining a robust TEFC enclosure with precision bearings and a hardened shaft. Certified for UL/CSA listings and CSA EEV, it also meets NEMA Premium Efficiency standards for energy-conscious facilities. For engineers and procurement teams, the unit offers straightforward integration with existing SKUs and stock-availability across multiple warehouses, enabling fast replacement and predictable maintenance planning. With a footprint aligned to frame 444T and a horizontal mounting orientation, it fits standard plant footprints while delivering long-term cost savings.
Product Information
Extended Description
7BECP4410TR-4 ABB: Severe Duty Motor 125 Hp 460 V (ECP4410TR-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
125HP,1785RPM,3PH,60HZ,445T,TEFC,F1
Ambient Temperature
40 °C
Bearing
0.000
Bearing NDE
6318 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP4410TR-4
Certification Agency
CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015381
Design
B
Dimension Diagram
617427-001: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
444
Frequency (f)
60 Hz
Global Commercial Alias
ECP4410TR-4
Gross Volume
105840 in³
Gross Weight
884.505 kg
Horsepower Rating UL/CSA
125.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
125HP,1785RPM,3PH,60HZ,445T,TEFC,F1
Made To Order
No
Medium Description
Severe Duty, 125 HP, 1800 RPM, Frame Size 444T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP4410TR-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
444T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
125 Hp
Power Factor
85 %
Product Name
Severe Duty
Product Net Depth / Length
48 in
Product Net Height
52.5 in
Product Net Weight
884.505 kg
Product Net Width
42 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
144 A
Rated Efficiency
95.40 %
Rated Speed
1785 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
3.38 in
Short Description
125 HP, 1800 RPM, Frame Size 444T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
Feature: Severe-duty design with 125 HP at 460 V; Business Impact: High torque and reliability in continuous-operation environments; Application: conveyors, crushers, and heavy processing lines. The rugged build reduces unplanned downtime and extends service life, supporting operations that run around the clock. Feature: Premium efficiency (95.40%) and 3-phase, 60 Hz operation; Business Impact: Lower energy consumption and operating costs over the motor’s life; Application: mining, metalworking, and large-scale manufacturing. Feature: TEFC enclosure and frame 444T with foot mounting; Business Impact: Enhanced protection from dust, moisture, and environmental contaminants; Application: plant floors with demanding ambient conditions and limited maintenance windows. Feature: Direct On Line starting and 1.15 service factor; Business Impact: Simplified start-up and improved load tolerance, reducing starter equipment and energy spikes; Application: standard plant drives and line-start motor control. Feature: Compliance and stock access; Business Impact: UL/CSA listing, CSA EEV, NEMA Premium Efficiency enable regulatory conformity and rapid procurement; Application: multinational facilities requiring consistent specifications and quick deployment.
Get a Quick Quote for a ABB 7BECP4410TR-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECP4410TR-4?
Enquire Now
FAQs
Yes. The motor is designed for Direct On Line starting and operates at 460 V, 3-phase, 60 Hz with a rated current of 144 A. This simplifies startup, reduces additional soft-starter hardware, and aligns with standard plant electrical infrastructure for immediate integration.
The motor carries UL/CSA listings and CSA EEV certification, along with NEMA Premium Efficiency. These credentials ensure regulatory compliance, better energy performance, and eligibility for energy-reduction incentives, making it suitable for facilities with strict procurement and environmental requirements.
The motor is stocked across multiple warehouses (including US and international locations) with 0 day lead time indicated for immediate availability. This supports fast replacements and minimized downtime in critical production lines.
The ECP4410TR-4 is a foot-mounted, 444T frame, horizontal mounting, with a shaft diameter of 3.38 inches and mounting position F1. This matches standard plant footprints, enabling straightforward retrofits and compatible coupling with existing gearboxes and conveyors.
With a TEFC enclosure, 125 HP output, and a premium-efficiency rating, operating costs are reduced over the motor’s life. The hardware is designed for long service intervals, while regulatory certifications simplify compliance. This combination supports a favorable return on investment for continuous-duty applications in harsh environments.
