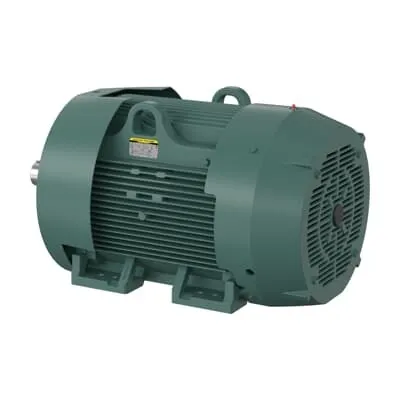

ABB ECP4412T Severe Duty Motor - 125HP TEFC 60Hz
Part Number: 7BECP4412T
Quick Summary
ABB ECP4412T Severe Duty Motor is a 125 HP, three-phase motor for rugged, continuous-duty applications in heavy manufacturing. Engineers often face downtime from unreliable drives in harsh environments, so reliability, ease of service, and predictable performance matter. This ABB model delivers Premium Efficiency (NEMA 12-12), a TEFC enclosure, and CSA EEV certification to support safe, compliant operation. Rated for 230/460 V at 60 Hz with a 444TS footprint, it eases installation and minimizes retrofit costs. Its robust bearings, long-service life, and precise mounting position make it a dependable backbone for continuous processes. By aligning with common drive systems and providing clear technical data, it supports faster procurement and reduced engineering risk.
Product Information
Extended Description
7BECP4412T ABB: Severe Duty Motor 125 Hp 230 V (ECP4412T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
125HP,3570RPM,3PH,60HZ,444TS,A4468M
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6313
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP4412T
Certification Agency
CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015381
Design
B
Dimension Diagram
617427-004: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
444
Frequency (f)
60 Hz
Global Commercial Alias
ECP4412T
Gross Volume
105899.063 in³
Gross Weight
887.68 kg
Horsepower Rating UL/CSA
125.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
125HP,3570RPM,3PH,60HZ,444TS,A4468M,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
Severe Duty, 125 HP, 3600 RPM, Frame Size 444Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (ECP4412T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
444TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
125 Hp
Power Factor
89 %
Product Name
Severe Duty
Product Net Depth / Length
49.5 in
Product Net Height
52.5 in
Product Net Weight
887.68 kg
Product Net Width
40.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
276 A | 138 A
Rated Efficiency
95 %
Rated Speed
3570 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.38 in
Short Description
125 HP, 3600 RPM, Frame Size 444Ts, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
F
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The Severe Duty design with TEFC enclosure protects against dust and moisture, reducing unplanned downtime and maintenance costs in dirty, aggressive environments such as mining feeders or metalworking lines. This translates to higher line uptime and lower service costs for facilities running 24/7 operations. Feature → Business Impact → Application: Premium Efficiency (NEMA 12-12) lowers energy consumption by delivering high efficiency over long run times, unlocking noticeable operating expense reductions in conveyors, pumps, and fans. Feature → Business Impact → Application: 230/460 V, 60 Hz capability provides flexible integration with existing electrical infrastructure, enabling straightforward replacement and easier procurement for retrofits in rolling stock yards, cement plants, or processing lines. Feature → Business Impact → Application: Frame 444TS, foot-mounted, horizontal mounting with mounting position F1 offers fast, bolt-in installation and simple alignment with existing equipment, cutting installation time and enabling quicker commissioning in packaging and material handling. Feature → Business Impact → Application: Service Factor 1.15 and a rated current of 276 A / 138 A provide reserve capacity for short overloads, improving start-up reliability in mixers, crushers, and extruders. Feature → Business Impact → Application: Insulation Class F and Temperature Class T3 extend bearings and windings life in ambient temperatures up to 40 °C and altitudes to 1000 m, reducing maintenance cycles in chemical plants and steel mills. Feature → Business Impact → Application: Direct On Line starting and a 2-pole, 3570 r/min design deliver robust torque for demanding processes, enabling smoother control in fans, pumps, and hoists while preserving energy efficiency and predictable performance. Long-term insight: The 125 HP, 3-phase, frame 444TS footprint is a proven upgrade path for legacy Baldor motors, minimizing retrofit risk and supporting lifecycle cost reductions for heavy industry installations.
