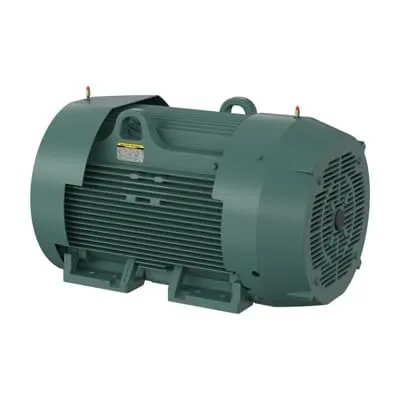

ABB 7BECP4416T-4 Severe Duty Motor - TEFC Premium Efficiency
Part Number: 7BECP4416T-4
Quick Summary
7BECP4416T-4 Severe Duty motor is a robust 200 HP, 460 V, 3-phase solution engineered for continuous operation in demanding industrial environments. This ABB motor delivers high torque, reliable performance, and long service life for rotating equipment such as conveyors, pumps, and crushers. When uptime matters, engineers often grapple with energy waste, heat, and maintenance costs; this model mitigates those challenges with Premium Efficiency and a TEFC enclosure designed for dusty or humid plants. With a foot-mounted 447TS frame and Direct On Line starting, it integrates smoothly with common drives, easing installation, spare-parts availability, and proactive maintenance planning. In short, you gain reliability, energy savings, and predictable performance for mission-critical industrial drives.
Product Information
Extended Description
7BECP4416T-4 ABB: Severe Duty Motor 200 Hp 460 V (ECP4416T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
200HP,3570RPM,3PH,60HZ,447TS,A44104
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313 | Ball
Bearing NDE
6313 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP4416T-4
Certification Agency
CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015381
Design
B
Dimension Diagram
617427-005: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
447
Frequency (f)
60 Hz
Global Commercial Alias
ECP4416T-4
Gross Volume
142222.5 in³
Gross Weight
2436 lb
Horsepower Rating UL/CSA
200.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot
Insulation Class
F
Invoice Description
200HP,3570RPM,3PH,60HZ,447TS,A44104M,TEF
Lubrication
Regreasable
Made To Order
No
Medium Description
Severe Duty, 200 HP, 3600 RPM, Frame Size 447Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP4416T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
447TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
200 Hp
Power Factor
91 %
Product Name
Severe Duty
Product Net Depth / Length
63 in
Product Net Height
52.5 in
Product Net Weight
2436 lb
Product Net Width
43 in
Product Type
NEMA_PREMIUM_SEVERE_DUTY
Quote Only
No
Rated Current (In)
213 A
Rated Efficiency
96.20 %
Rated Speed
3570 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.38 in
Short Description
200 HP, 3600 RPM, Frame Size 447Ts, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
Feature: TEFC enclosure provides rugged protection against dust and moisture. Business Impact: Reduced contamination risk and longer bearing life in harsh environments. Application: Cement plants, mining operations, and heavy material handling where environmental conditions are tough. Feature: Premium Efficiency (NEMA 12-12) with 200 HP output. Business Impact: Lower energy costs and cooler operation, improving site throughput and overall equipment effectiveness. Application: Continuous-duty conveyors and pumps in high-load manufacturing lines.Feature: 447TS frame, 63 in net length, 52.5 in net height, 43 in net width. Business Impact: Standardized footprint enables straightforward replacement and compatibility with existing misaligned mounts. Application: Retrofit projects and new installations requiring a familiar NEMA frame for quick commissioning.Feature: Direct On Line starting and 3-phase 460 V supply. Business Impact: Simple start-up with minimal additional control hardware, reducing startup time and maintenance complexity. Application: Heavy-duty fans, mills, and crushers that demand immediate torque.Feature: Regreasable bearings (6313 Ball). Business Impact: Lower maintenance intervals and extended bearing life in continuous-service motors. Application: Food processing, chemical plants, and any continuous-m Duty-cycle equipment.Feature: Frame material Iron and robust construction. Business Impact: Enhanced durability for high-vibration environments, reducing unscheduled downtime. Application: Steel, cement, and mineral processing environments where shock loads are common.Feature: 3-phase operation with 60 Hz frequency and 460 V rating. Business Impact: Compatibility with standard industrial grids and equipment, enabling straightforward integration with existing VFDs or direct-wleeted drives. Application: General heavy-industrial drives, including motors used on conveyor systems and pumps.
Get a Quick Quote for a ABB 7BECP4416T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECP4416T-4?
Enquire Now
FAQs
Yes. The motor is rated for 460 V, 3-phase, 60 Hz, which aligns with typical industrial power distribution. It uses Direct On Line starting and a foot-mounted 447TS frame for straightforward integration into existing drives and mounting footprints, enabling quick commissioning and minimal control-system adjustments.
This is a Premium Efficiency motor with a TEFC enclosure, designed for continuous duty. It delivers 200 HP with a service factor of 1.15 and a rated speed of 3570 r/min. The TEFC design protects windings in dusty and humid environments, while the premium efficiency rating reduces energy losses in demanding applications.
Ideal for heavy-duty drives such as conveyors, pumps, crushers, and material-handling equipment in cement, mining, metals, and aggregate processing. Its robust frame, regreasable bearings, and DOL starting make it well-suited to installations requiring reliable uptime and minimal maintenance, with compatible footprints for retrofit projects.
The motor is rated Premium Efficiency and uses a TEFC enclosure, with CSA EEV as a referenced certification. It aligns with NEMA design B, and its construction supports demanding industrial environments while meeting regulatory expectations for efficiency and reliability.
Regreasable bearings and a rugged iron frame reduce lubrication downtime and bearing wear, lowering maintenance costs and downtime. The energy efficiency gains further reduce operating expenses, improving total cost of ownership and payback time in long-running, continuous-duty applications.
