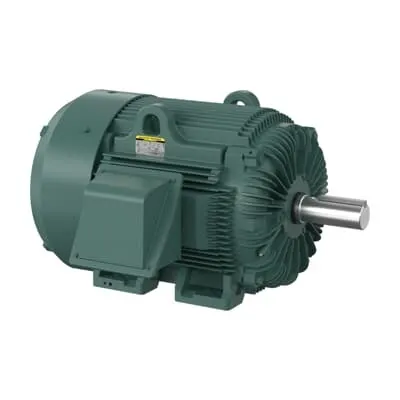

ABB 7BECP4417T-4 Severe Duty Motor - 460V Class I
Part Number: 7BECP4417T-4
Quick Summary
ABB 7BECP4417T-4 Severe Duty Motor is a 50 HP, 460 V three-phase drive solution for demanding industrial applications. In harsh environments, reliability and uptime are critical, and this motor is engineered to minimize unplanned downtime while controlling energy usage. It carries NEMA design standards with a TEFC enclosure, and CSA US/CCSA US listings, plus explosion-proof Class I compatibility for safe operation in hazardous areas. The combination of a 405T frame, foot mounting, and direct-on-line starting delivers predictable performance, streamlined procurement, and lower lifecycle costs for heavy-duty drives and process equipment.
Product Information
Extended Description
7BECP4417T-4 ABB: Severe Duty Motor 50 Hp 460 V (ECP4417T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,890RPM,3PH,60HZ,405T,TEFC,FOOT
Ambient Temperature
40 °C
Bearing
6316, Ball
Bearing NDE
6316
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP4417T-4
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
617429-501: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Energy Efficiency (NEMA 12-11)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
405
Frequency (f)
60 Hz
Global Commercial Alias
ECP4417T-4
Gross Volume
75711.563 in³
Gross Weight
551.568 kg
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
50HP,890RPM,3PH,60HZ,405T,TEFC,FOOT,
Made To Order
No
Medium Description
Severe Duty, 50 HP, 900 RPM, Frame Size 405T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP4417T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
405T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
8P
Number of Poles (High)
8
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
80 %
Product Name
Severe Duty
Product Net Depth / Length
41.5 in
Product Net Height
52.5 in
Product Net Weight
551.568 kg
Product Net Width
34.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
63 A
Rated Efficiency
93 %
Rated Speed
890 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.88 in
Short Description
50 HP, 900 RPM, Frame Size 405T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
900 r/min
Temperature Class
T3C
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
Feature → Business Impact → Application: The 50 HP, 460 V three-phase specification provides ample torque for startup and steady-state operation, enabling reliable conveyor and pump performance with direct-on-line starting. This reduces drive complexity and minimizes downtime when replacing legacy units. Application: heavy-duty material handling, mining feeders, and process pumps benefit from fast commissioning and dependable startup. Feature → Business Impact → Application: TEFC enclosure with a 405T frame and foot mounting delivers robust protection against dust and moisture while simplifying installation and maintenance. This enables safer operation in dirty or humid industrial environments and improves long-term enclosure integrity. Application: packaging lines, metal fabrication, and chemical processing. Feature → Business Impact → Application: NEMA design B, service factor 1.15, and rated speed of 890 r/min provide thermal and mechanical margin, reducing overheating risk during peak loads and enabling longer filter cycles in demanding drives. Application: mixers, crushers, and grinding mills. Feature → Business Impact → Application: Explosion-proof Class I, Group A-D compatibility ensures safe operation in hazardous zones, supporting compliance with industry safety standards. Application: mining, chemical processing, and oil & gas facilities. Feature → Business Impact → Application: fast stock availability and a 0-day lead-time capability at multiple warehouses reduces downtime and project delays. Application: emergency replacements and critical spares for large-scale manufacturing. Feature → Business Impact → Application: 3-phase, 60 Hz operation with a 2.88 in shaft diameter and DOL starting supports standard machine integration with common couplings and gearboxes. Application: material handling and process automation lines.
