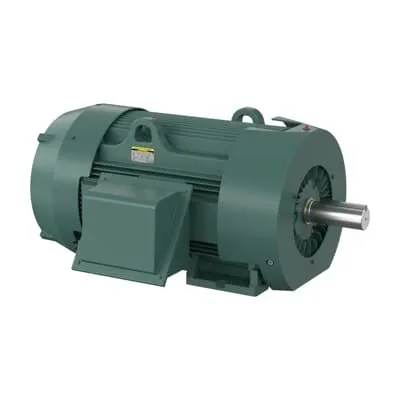

ABB 7BECP44304T-5 Severe Duty Motor - CSA EEV
Part Number: 7BECP44304T-5
Quick Summary
ABB 7BECP44304T-5 is a severe-duty, 300 HP, 575 V three-phase motor designed for continuous operation in demanding manufacturing and processing environments. It helps plant managers and maintenance teams minimize downtime by delivering rugged reliability, consistent performance, and fast procurement from US stock. The motor carries key certifications and standards, including CSA EEV certification and NEMA design compliance, and features a TEFC enclosure with a 449T frame for durable service in harsh conditions. Originating in the United States, this model supports domestic sourcing programs and predictable lead times. In practice, the combination of high efficiency, robust bearings, and straightforward installation translates into lower total cost of ownership over the motor’s life cycle.
Product Information
Extended Description
7BECP44304T-5 ABB: Severe Duty Motor 300 Hp 575 V (ECP44304T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
300HP,1785RPM,3PH,60HZ,449T,TEFC,F1
Ambient Temperature
40 °C
Bearing
6318, Ball
Bearing NDE
6318
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP44304T-5
Certification Agency
CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015381
Drive End Flange Type
Standard
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
449
Frequency (f)
60 Hz
Global Commercial Alias
ECP44304T-5
Gross Volume
132300 in³
Gross Weight
1428.816 kg
Insulation Class
F
Invoice Description
300HP,1785RPM,3PH,60HZ,449T,TEFC,F1
Made To Order
No
Medium Description
Severe Duty, 300 HP, 1800 RPM, Frame Size 449T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (ECP44304T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
449T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
300 Hp
Power Factor
88 %
Product Name
Severe Duty
Product Net Depth / Length
60 in
Product Net Height
52.5 in
Product Net Weight
1428.816 kg
Product Net Width
42 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
267 A
Rated Efficiency
96.20 %
Rated Speed
1785 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
3.38 in
Short Description
300 HP, 1800 RPM, Frame Size 449T, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
575 V
Feature: 575 V, 3-phase, 300 HP, 1785 RPM, 449T frame with TEFC enclosure. Business Impact: Delivers robust torque and reliable performance in demanding loads while tolerating normal plant dust and moisture. Application: conveyors, pumps, and mixers in heavy manufacturing and process industries. Feature: 40 °C ambient rating and durable bearings (6318) for long service life. Business Impact: reduces maintenance frequency and unexpected downtime, lowering maintenance costs. Application: mining, cement, and mineral processing environments. Feature: Efficiency 96.20% and 1.15 service factor with 0-day lead time stock. Business Impact: energy savings and predictable uptime for capital projects, improving total cost of ownership. Application: energy-intensive systems in large-scale plants. Feature: NEMA Design B, Direct On Line starting, Foot Mounted base, and Horizontal mount (F1). Business Impact: simplifies installation, alignment, and replacement, enabling quick commissioning and compatibility with existing drives. Application: retrofits and new line installations in packaging, chemical, and plastics facilities. Feature: 449T frame, 3-phase, 60 Hz, 575 V with TEFC enclosure and US-origin manufacturing. Business Impact: compact footprint with a proven supply chain, supporting just-in-time procurement and fast project kick-offs. Application: any high-demand, continuous-duty motor installation requiring reliable performance.
