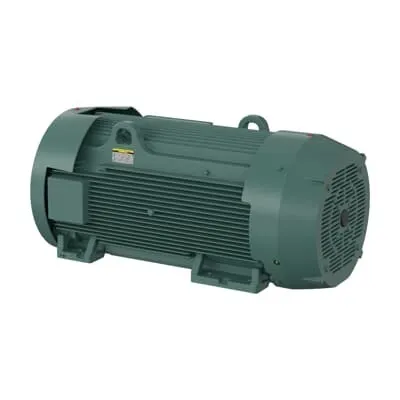

ABB 7BECP44402T-4 Severe Duty Motor - 460V TEFC
Part Number: 7BECP44402T-4
Quick Summary
Severe Duty Motor drives heavy-duty processes with 400 HP at 460 V for continuous manufacturing. In demanding environments, standard motors can experience excessive heat, vibration, and downtime that erode uptime and inflate maintenance costs. This ABB design delivers Premium Efficiency with a TEFC enclosure, CSA EEV certification, and a robust frame to meet North American standards. For engineers and procurement teams, the combination of reliability, energy savings, and lifecycle predictability translates into lower operational risk and smoother automation upgrades. Built for automation, this motor supports pumps, conveyors, and fans in heavy industry while simplifying installation and maintenance planning.
Product Information
Extended Description
7BECP44402T-4 ABB: Severe Duty Motor 400 Hp 460 V (ECP44402T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
400HP,3570RPM,3PH,60HZ,L449TS,A4420
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313 | Ball
Bearing NDE
6313 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECP44402T-4
Certification Agency
CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015381
Design
B
Dimension Diagram
617435-427: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
449
Frequency (f)
60 Hz
Global Commercial Alias
ECP44402T-4
Gross Volume
202125 in³
Gross Weight
3091 lb
Horsepower Rating UL/CSA
400.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
400HP,3570RPM,3PH,60HZ,L449TS,A44208M,TE
Lubrication
Regreasable
Made To Order
No
Medium Description
Severe Duty, 400 HP, 3600 RPM, Frame Size L449Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP44402T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Prefix
L
Motor Frame Size
L449TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
400 Hp
Power Factor
92 %
Product Name
Severe Duty
Product Net Depth / Length
70 in
Product Net Height
52.5 in
Product Net Weight
3091 lb
Product Net Width
55 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
420 A
Rated Efficiency
96.20 %
Rated Speed
3570 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.38 in
Short Description
400 HP, 3600 RPM, Frame Size L449Ts, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
F
Voltage Rating
460 V
Feature: Premium Efficiency motor design delivers reduced energy consumption and lower operating costs. Business Impact: Lower utility bills and improved overall equipment effectiveness (OEE) in continuous processes. Application: Suitable for long-running fans, pumps, and conveyors in packaging, mining, and chemical plants. Feature: TEFC enclosure provides superior protection against dust, moisture, and contaminants. Business Impact: Enhanced reliability in harsh factory floors reduces unplanned downtime. Application: Ideal for outdoor-rated or dirty environments such as sawmills and processing lines. Feature: Foot-mounted frame L449TS with horizontal mounting orientation simplifies retrofits and new installations. Business Impact: Faster commissioning and reduced installation risk for existing bases. Application: Common in automation cell upgrades and line-move projects. Feature: 3-phase, 460 V, 60 Hz operation with 3570 r/min nominal speed supports high torque and quick acceleration. Business Impact: Improved process control, startup performance, and motor-driven equipment uptime. Application: Conveyors, dosing systems, and centrifuges in continuous duty. Feature: Regreasable bearings and robust ball bearings (6313) offer long service life with scheduled maintenance. Business Impact: Lower maintenance cost per hour and extended mean time between outages (MTBO). Application: Heavy-duty drives with frequent re-lubrication intervals. Feature: Certifications and compliance (CSA EEV, Premium Efficiency, NEMA Design B) enhance regulatory readiness. Business Impact: Easier audits, interoperability with North American electrical standards, and resale value. Application: Industrial plants expecting strict regulatory and energy-efficiency requirements. This combination of durability, efficiency, and certification supports cost-effective upgrades and reliable uptime across a range of heavy industry applications.
Get a Quick Quote for a ABB 7BECP44402T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECP44402T-4?
Enquire Now
FAQs
Yes. The motor uses a foot-mounted configuration with a horizontal mounting orientation and frame size L449TS, designed to integrate with common baseplates and existing alignment. When planning retrofit or new install, verify bolt pattern, shaft alignment, and coupling clearance to ensure a smooth swap with minimal downtime.
The motor is a 400 HP, 460 V, 3-phase unit operating at 60 Hz with a rated speed of 3570 r/min. It features a TEFC enclosure, frame L449TS, and a 2.38 in shaft diameter. It also offers 1.15 service factor and a high efficiency rating, contributing to energy savings in continuous-duty applications.
This Severe Duty motor excels in heavy conveyors, pumps, fans, mixers, and other continuous-duty equipment. Its robust TEFC enclosure, premium efficiency, and 400 HP rating make it ideal for process lines in manufacturing, mining, and chemical plants where reliability and uptime are critical.
The motor carries CSA EEV certification and is designed for Premium Efficiency with a NEMA Design B configuration. It uses a TEFC enclosure and is compatible with North American electrical standards, simplifying regulatory compliance and project approvals.
Maintenance features include regreasable bearings and a robust ball bearing setup (6313). This supports longer service intervals and predictable MTBF. ROI is enhanced through energy savings from Premium Efficiency, reduced downtime from rugged TEFC protection, and straightforward maintenance planning for automated lines.
