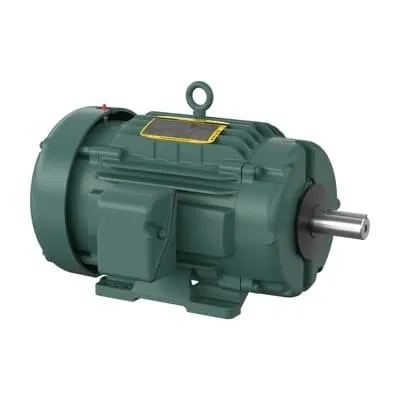

ABB 7BECP62333TR-4 Severe Duty Motor - Premium Efficiency
Part Number: 7BECP62333TR-4
Quick Summary
ABB 7BECP62333TR-4 Severe Duty Motor delivers 15 HP at 460 V for demanding industrial drives such as conveyors and processing lines. This robust, 3-phase motor targets reliability under harsh operating conditions, reducing unplanned downtime and maintenance costs. It carries trusted certifications and energy-performance credentials to simplify compliance across international sites. With NEMA Premium efficiency, CSA EEV, and UR approvals, this TEFC enclosure motor is designed for global installations while remaining compatible with standard drive systems. The combination of rugged construction and energy-conscious design supports longer service life, lower operating costs, and smoother retrofits for existing equipment fleets, making it a sound choice for OEMs and maintenance teams alike.
Product Information
Extended Description
7BECP62333TR-4 ABB: Severe Duty Motor 15 Hp 460 V (ECP62333TR-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,1760RPM,3PH,60HZ,254T,0944M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
NU309, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP62333TR-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
09LYK884: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
ECP62333TR-4
Gross Volume
14448.906 inÂł
Gross Weight
146.964 kg
Horsepower Rating UL/CSA
15.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
15HP,1760RPM,3PH,60HZ,254T,0944M,TEFC,F1
Lubrication
Oil Forced
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
661XL Heat Exchanger, 15 HP, 1800 RPM, Frame Size 254T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP62333TR-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
85 %
Product Name
661XL Heat Exchanger
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
146.964 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
17.6 A
Rated Efficiency
92.40 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
15 HP, 1800 RPM, Frame Size 254T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
Feature → Business Impact → Application: Severe duty construction with iron frame and TEFC enclosure delivers high mechanical robustness, improving uptime in heavy-duty environments and reducing maintenance cycles for continuous-process equipment. This translates to lower total cost of ownership for customers running conveyors, mixers, and pumps in demanding facilities. Feature → Business Impact → Application: Premium efficiency (NEMA Premium) reduces energy consumption by aligning with corporate energy targets while maintaining performance at 60 Hz, 460 V, and 1760 rpm. Ideal for OEMs seeking compliant, energy-conscious drives in material handling and water treatment. Feature → Business Impact → Application: Direct-on-line starting and 3-phase operation offer simple integration with existing VFDs or soft-start configurations, minimizing installation time and startup risk for new lines or line-side upgrades. Feature → Business Impact → Application: IP-rated TEFC enclosure and operating envelope (40 °C ambient, 1000 m altitude) ensure reliable operation in factories, mills, and outdoor enclosures, supporting extended service life in variable conditions. Feature → Business Impact → Application: Foot-mounted, horizontal mounting with 254T frame size aligns with standard mounting footprints, enabling quick retrofit and compatible upgrades to legacy systems like pumps and fans in process industries. Feature → Business Impact → Application: Certified for CSA EEV, UR, and NEMA PREMUIM, providing regulatory compliance across North America and global facilities, reducing vendor risk and certification overhead.
Get a Quick Quote for a ABB 7BECP62333TR-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECP62333TR-4?
Enquire Now
FAQs
Yes. The 254T frame with foot-mounted, horizontal mounting is designed for 3-phase 460 V supply at 60 Hz. It supports direct-on-line starts and integrates with common VFDs or soft starters, enabling straightforward retrofit or new installations without custom mounting adapters.
It provides 15 HP at 1760 rpm, 460 V, 3-phase, with a service factor of 1.15. The motor uses a TEFC enclosure, oil-forced lubrication, and a 1.63 in shaft diameter. Efficiency is categorized as Premium Efficiency, aligning with NEMA PRE and CSA approvals for reliable operation.
Ideal for heavy-duty conveyors, pumps, fans, and processing equipment in manufacturing, mining, and energy sectors. Its rugged iron frame and TEFC housing tolerate demanding environments, while 60 Hz operation supports synchronous speed around 1800 r/min for compatible drives.
The motor is certified for CSA EEV, UR, and NEMA Premium efficiency. These certifications facilitate multi-region deployment and reduce the need for additional local testing, accelerating project timelines.
With oil-forced lubrication and a robust TEFC design, maintenance intervals are extended, lowering downtime. The energy-efficient operation reduces utility costs, and zero lead time stock at multiple warehouses improves uptime when replacements are needed.
