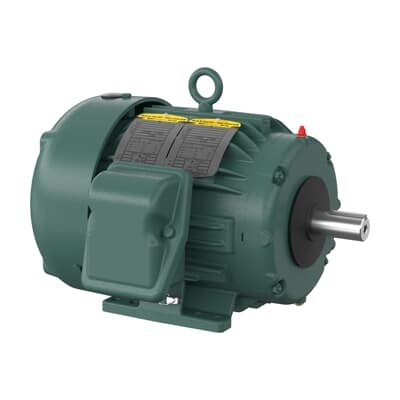

ABB 7BECP63665T-4 Motor - 5 HP 460V IE3 Premium
Part Number: 7BECP63665T-4
Quick Summary
ABB 7BECP63665T-4 motor is a robust 5 HP, 460 V three-phase solution engineered for continuous operation in harsh industrial environments. This severe-duty motor delivers reliable torque and stable speed for demanding applications like pumps, fans, and conveyors. If you’re facing rising energy costs or inconsistent performance, this motor helps mitigate those challenges with proven efficiency and durable construction. It carries major certifications and approvals across regions, including NEMA Premium, CSA EEV, and UR, ensuring compliance and reliability. With a TEFC enclosure, 184T frame, and 60 Hz operation, it aligns with strict industrial standards while enabling straightforward installation, predictable maintenance schedules, and long service life for uptime-driven operations.
Product Information
Extended Description
7BECP63665T-4 ABB: Severe Duty Motor 5 Hp 460 V (ECP63665T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184T,0641M,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP63665T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
06LYK171: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
ECP63665T-4
Gross Volume
7192.91 inÂł
Gross Weight
128 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184T,0641M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
661XL Heat Exchanger, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP63665T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
81 %
Product Name
661XL Heat Exchanger
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
128 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6.45 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B06K171X203
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
J
Voltage Rating
460 V
Feature → Business Impact → Application: Premium IE3 efficiency reduces energy consumption in every duty cycle, delivering measurable cost savings on pumps and conveyors while maintaining process stability in continuous operation environments. Application: ideal for high-load, constant-speed drives where energy codes and utility incentives reward efficiency gains. Feature → Business Impact → Application: TEFC enclosure provides rugged protection against dust, moisture, and splash, extending motor life in harsh factory floors and outdoor enclosures. Application: suitable for food and beverage lines, milling, and heavy machinery where ingress protection is critical. Feature → Business Impact → Application: 184T frame with foot mounting and horizontal orientation enables straightforward retrofits and streamlined installation on existing bases, reducing downtime. Application: common on fans, compressors, and mixers where space constraints drive conventional mounting. Feature → Business Impact → Application: Regreasable bearings and DOL starting support long intervals between maintenance cycles and simple startup sequences, lowering maintenance costs and startup risk. Application: maintenance planning for aging fleets and new builds in process industries. Feature → Business Impact → Application: NEMA Premium/IE3 certifications provide regulatory alignment and potential energy incentives, improving total cost of ownership. Application: procurement and compliance teams rely on these marks for audits and supplier qualification. These motors also support compatibility with VFDs and soft starters for precise control in packaging lines and material handling.
Get a Quick Quote for a ABB 7BECP63665T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECP63665T-4?
Enquire Now
FAQs
Yes. The 7BECP63665T-4 is a 3-phase 460 V, 60 Hz motor designed for direct-on-line starting, and it can be paired with VFDs or soft starters to achieve controlled acceleration, smoother torque, and energy optimization in variable-speed duties such as pump and fan systems. Ensure proper VFD programming for 60 Hz operation and verify the insulation class (F) and bearing protection for mission-critical runs.
Key ratings include 5 HP output, 460 V line voltage, 3-phase configuration, 60 Hz frequency, and 184T frame size. It uses a TEFC enclosure and features a 1.13 in shaft diameter with a 6206 ball bearing setup. The motor is rated for continuous duty with a service factor of 1.15 and start method Direct On Line (DOL).
This motor excels in continuous-duty applications such as pumps, fans, conveyors, and mixers that require reliable torque and controlled performance. Its frame size (184T), TEFC enclosure, and 60 Hz operation make it a strong fit for manufacturing lines, process equipment, and material handling systems in automotive, packaging, and general manufacturing environments.
The motor aligns with NEMA Premium and IE3 efficiency designations, with certification coverage including CSA EEV and UR. These approvals facilitate regulatory compliance, utility incentives, and smoother supplier qualification for industrial procurement.
Maintenance benefits come from regreasable bearings and a robust TEFC enclosure that protects against environmental contaminants. The 5 HP, 460 V design reduces energy consumption, delivering measurable ROI through lower operating costs. Regular lubrication checks and periodic bearing inspections are recommended to sustain peak efficiency and longevity.
