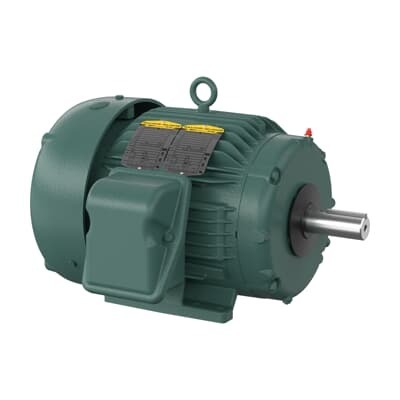

ABB 7BECP63770TR-4 Severe Duty Motor - NEMA Premium
Part Number: 7BECP63770TR-4
Quick Summary
ABB 7BECP63770TR-4 Severe Duty Motor is a reliable 7.5 HP, 460 V three-phase drive for heavy machinery and process lines. It addresses downtime and energy costs with a rugged TEFC enclosure, premium efficiency, and long-life bearings designed for continuous operation. Certified for CSA EEV, UR, and NEMA Premium, this motor meets stringent regulatory standards while delivering dependable performance in harsh environments. Built for OEMs and maintenance teams, it supports quick stocking and straightforward integration with existing equipment, reducing project risk and total cost of ownership. With its 213T frame, horizontal mounting, and robust design, it fits easily into a wide range of new and retrofit applications.
Product Information
Extended Description
7BECP63770TR-4 ABB: Severe Duty Motor 7.50 Hp 460 V (ECP63770TR-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1765RPM,3PH,60HZ,213T,0740M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
NU307, Roller
Bearing NDE
6307
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP63770TR-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
07LYM686: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
ECP63770TR-4
Gross Volume
9144.346 inÂł
Gross Weight
195 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,1765RPM,3PH,60HZ,213T,0740M,TEFC,F
Lubrication
Oil Forced
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
661XL Heat Exchanger, 7.5 HP, 1800 RPM, Frame Size 213T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP63770TR-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.50 Hp
Power Factor
82 %
Product Name
661XL Heat Exchanger
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
195 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9.5 A
Rated Efficiency
91.70 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
H
Voltage Rating
460 V
7.5 HP, 460 V, 3-phase input delivers reliable torque and robust startup performance, maintaining steady speed under load for demanding drives such as conveyors and pumps. In heavy industry, undersized motors trigger frequent slowdowns and premature wear; this model mitigates that risk with solid torque reserves and consistent performance across a wide operating range. The ABB design supports critical applications in manufacturing and processing lines, delivering predictable control for packaging, mixing, and material handling while enabling downstream equipment to run at target throughput. Feature: TEFC enclosure provides a shielded rotor and winding environment, shielding internals from dust, moisture, and coolants common on factory floors. Business impact: reduced maintenance intervals, lower lubrication costs, and fewer unplanned outages. Application: ideal for cement, chemical, mining, and food & beverage sectors where harsh ambient conditions are routine. Frame 213T and mounting: With a 213T frame, foot-mounted, horizontal orientation (F1), installation aligns with standard baseplates and simplifies retrofits. Business impact: shorter installation time, fewer customization steps, and improved vibration control thanks to a rigid foundation. Application: OEM equipment, packaging lines, and process skids benefit from quick, vibration-resistant mounting. Design and efficiency: NEMA Design B, insulation class F, and Premium efficiency rating deliver predictable torque curves, thermal margin, and energy savings. Business impact: improved process stability, lower energy bills, and compliance with energy-performance programs. Application: continuous-duty operations in conveyors, blowers, and circulating pumps across manufacturing facilities. Regulatory and maintenance considerations: CSA EEV, UR, and NEMA Premium certifications ensure regulatory compliance and risk mitigation for US and international deployments. Business impact: easier supplier qualification, reduced audit risk, and faster commissioning. Application: suitable for US plants and global projects requiring reliable performance and certified quality.
