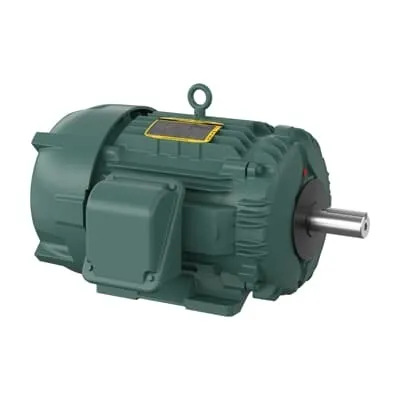

ABB 7BECP64103TR-4 Motor - Premium Efficiency TEFC
Part Number: 7BECP64103TR-4
Quick Summary
ABB 7BECP64103TR-4 Motor is a 25 HP, 460 V three-phase machine designed for continuous operation in severe-duty industrial environments. It delivers reliable performance for pumps, fans, and conveyors across general industry while reducing downtime and maintenance costs. The design is supported by UL/CSA listings and NEMA Premium efficiency certification, plus UR recognition for global compliance. With ABB Baldor-Reliance lineage, procurement becomes simpler, spares are widely available, and service intervals can be aligned with plant maintenance windows. The TEFC enclosure, oil-forced lubrication, and robust NU311 bearings make it suitable for rugged installations at ambient temperatures up to 40 °C and altitudes up to 1000 meters, delivering predictable total cost of ownership outcomes.
Product Information
Extended Description
7BECP64103TR-4 ABB: Severe Duty Motor 25 Hp 460 V (ECP64103TR-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1770RPM,3PH,60HZ,284T,1056M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
NU311, Roller
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP64103TR-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
10LYJ448: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
ECP64103TR-4
Gross Volume
18748.226 in³
Gross Weight
461 lb
Horsepower Rating UL/CSA
25.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
25HP,1770RPM,3PH,60HZ,284T,1056M,TEFC,F1
Lubrication
Oil Forced
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
661XL Heat Exchanger, 25 HP, 1800 RPM, Frame Size 284T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP64103TR-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
85 %
Product Name
661XL Heat Exchanger
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
461 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
30 A
Rated Efficiency
93.60 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B10J448Z580G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
25 HP, 1800 RPM, Frame Size 284T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
Feature: 25 HP, 460 V three-phase design. Business Impact: Aligns with standard industrial power systems, enabling straightforward electrical design and reliable torque delivery. Application: Pumps, fans, and conveyors in manufacturing and process environments seeking consistent performance. Feature: TEFC enclosure. Business Impact: Protects windings from dust, moisture, and contaminants, reducing maintenance needs and extending motor life. Application: Factory floors, automation cells, and demanding environments where wash-down or dust exposure occurs. Feature: Premium Efficiency. Business Impact: Lower operating costs through higher efficiency (up to 93.60% rated), improving energy stewardship over long runtimes. Application: Continuous-duty equipment like conveyors and material handling systems in energy-conscious facilities. Feature: Frame Size 284T with Foot Mounted, Horizontal (F1). Business Impact: Standardized mounting simplifies installation, alignment, and spare-part compatibility, accelerating retrofit projects. Application: OEM equipment and retrofit upgrades across general industry. Feature: Direct-on-Line starting. Business Impact: Minimal control hardware and straightforward commissioning, reducing initial capital spend and startup time. Application: Plant lines and OEM machinery where rapid ramp-up is critical. Feature: Bearing and Lubrication robustness (NU311, Roller; Oil Forced). Business Impact: Enhanced load-carrying capability and long bearing life, lowering maintenance frequency and lifecycle costs. Application: High-torque start/stop cycles in pumps and fans, especially under heavy-duty duty cycles. Feature: 60 Hz operation, 1.88 in shaft diameter, 60 Hz compliance. Business Impact: Predictable electrical performance and compatibility with standard drive trains and couplings. Application: Industrial drives, gearboxes, and belts where precise shaft engagement matters. These features collectively support improved reliability, energy efficiency, and installation efficiency for 25 HP motors in varied industrial settings, while addressing common objections about retrofit complexity and energy usage, and aligning with long-term procurement strategies and spare-part availability.
