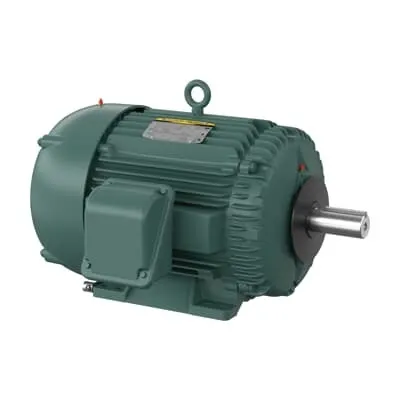

ABB 7BECP64115TR-4 Motor - Premium Efficiency
Part Number: 7BECP64115TR-4
Quick Summary
The ABB 7BECP64115TR-4 motor provides high-efficiency, severe-duty power for demanding industrial drives such as conveyors and pumps. Users often struggle with uptime, energy costs, and maintenance in harsh environments. This motor carries NEMA Premium efficiency, CSA EEV, and UR certifications, reinforcing reliability in safety-focused, regulated applications, while its TEFC enclosure and premium insulation class support long life in tough conditions. Designed for compatibility with standard 326T frames, 460 V, 60 Hz, and 3-phase systems, it offers predictable performance and reduced operating costs. The robust design translates into lower total cost of ownership, better uptime, and easier maintenance planning, aligning with plant-wide energy-savings goals and compliance standards.
Product Information
Extended Description
7BECP64115TR-4 ABB: Severe Duty Motor 50 Hp 460 V (ECP64115TR-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,1770RPM,3PH,60HZ,326T,1272M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
NU312, Roller
Bearing NDE
6312
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP64115TR-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
12LYG908: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
ECP64115TR-4
Gross Volume
24317.313 inÂł
Gross Weight
687 lb
Horsepower Rating UL/CSA
50.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
W6
Insulation Class
F
Invoice Description
50HP,1770RPM,3PH,60HZ,326T,1272M,TEFC,F1
Lubrication
Oil Forced
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
661XL Heat Exchanger, 50 HP, 1800 RPM, Frame Size 326T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP64115TR-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
87 %
Product Name
661XL Heat Exchanger
Product Net Depth / Length
43.25 in
Product Net Height
21.625 in
Product Net Weight
687 lb
Product Net Width
26 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
57 A
Rated Efficiency
94.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.13 in
Short Description
50 HP, 1800 RPM, Frame Size 326T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
Feature: Premium efficiency (NEMA Premium) 50 HP motor at 460 V, 3-phase. Business Impact: reduces energy losses and limits heat generation, lowering cooling requirements in continuous-duty lines. Application: ideal for conveyors, pumps and process equipment in automated facilities. Feature: TEFC enclosure with 326T frame and foot-mounted configuration. Business Impact: robust protection against dust, moisture and harsh factory environments, extending bearing life and uptime. Application: suitable for factory floors, outdoor installations and tight mounting spaces where standard mounts are used. Feature: Direct on line starting with 3-phase 460 V supply and 60 Hz operation. Business Impact: straightforward installation, reliable inrush control, and quick commissioning, reducing downtime during setup. Application: common in packaging lines, material handling and water-treatment drives. Feature: Bearing NU312, roller bearings with oil-forced lubrication. Business Impact: improved bearing life and reduced maintenance intervals, lowering lifetime maintenance costs. Application: heavy-load conveyors and fans operating in continuous duty. Feature: Service Factor 1.15 and Insulation Class F. Business Impact: torque margin for peak loads and higher temperature resilience, minimizing derating in hot environments. Application: critical in operations with fluctuating loads and elevated ambient temperatures. Feature: Frame Size 326T, Shaft Diameter 2.13 in, 4-pole, 1770 r/min nominal (1800 r/min synchronous). Business Impact: compatible with standard couplings and drives, predictable performance for matched gearboxes and belts. Application: automotive, material handling and process automation requiring reliable speed and torque.
