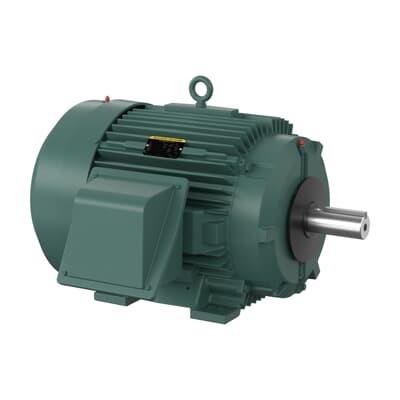

ABB 7BECP64314TR-4 Motor - Premium Efficiency
Part Number: 7BECP64314TR-4
Quick Summary
ABB 7BECP64314TR-4 is a high-efficiency, 60 HP, 460 V three-phase motor designed for continuous duty in demanding industrial environments. This robust TEFC motor delivers reliable starting torque and steady performance under heavy loads, reducing unplanned downtime and energy waste. The unit carries critical certifications that support safety and compliance, including NEMA Premium efficiency, UR recognition, and CCSA US listing, helping you meet regulatory requirements with confidence. With a 364T frame, vertical mounting, and a 1.15 service factor, it accommodates standard drives and existing footprints. Stock availability across multiple warehouses enables faster procurement, while compatibility with ABB Baldor-Reliance product families simplifies maintenance and parts planning, supporting long-term operational reliability.
Product Information
Extended Description
7BECP64314TR-4 ABB: Severe Duty Motor 60 Hp 460 V (ECP64314TR-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,1780RPM,3PH,60HZ,364T,A3658M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
NU313, Roller
Bearing NDE
6313
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP64314TR-4
Certification Agency
CCSA US | CCSAUSEEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
617428-022: Dimension Sheet
Direction of Rotation
CCW Counter clockwise
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
364
Frequency (f)
60 Hz
Global Commercial Alias
ECP64314TR-4
Gross Volume
33833.008 inÂł
Gross Weight
424.562 kg
Horsepower Rating UL/CSA
60.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
W6
Insulation Class
F
Invoice Description
60HP,1780RPM,3PH,60HZ,364T,A3658M,TEFC,W
Lubrication
Oil Forced
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
661XL Heat Exchanger, 60 HP, 1800 RPM, Frame Size 364T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP64314TR-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
364T
Mounting Orientation
Vertical
Mounting Position
W6
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
84 %
Product Name
661XL Heat Exchanger
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
424.562 kg
Product Net Width
32.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
70 A
Rated Efficiency
95 %
Rated Speed
1780 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.38 in
Short Description
60 HP, 1800 RPM, Frame Size 364T, Standard, 3 PH, TEFC, 460 V
Standards
None
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
Feature → Business Impact → Application: The ABB 7BECP64314TR-4 delivers Premium Efficiency (NEMA Premium) which reduces energy consumption and lowers operating costs across continuous-running loads such as pumps and conveyors. This translates to measurable annual savings and a smaller carbon footprint, especially in high-hour installations. The 60 HP, 460 V three-phase configuration provides strong torque at start-up and steady torque under load, improving process stability in demanding process lines and air handling systems. Frame 364T with foot mounting and vertical orientation offers straightforward replacement in legacy footprints, minimizing downtimes during upgrade projects and enabling plug-and-play compatibility with existing motor drives and VFDs. The TEFC enclosure and oil-forced lubrication reduce contamination risk in harsh factory environments, improving maintenance intervals and life-cycle costs. Bearings NU313 and a service factor of 1.15 support reliable operation in hot, dusty plants, reducing unscheduled maintenance. Stocked at multiple warehouses (US and abroad) with zero-day lead times enhances procurement velocity for critical spares and rapid deployment in critical lines, supporting lean manufacturing and just-in-time strategies.
