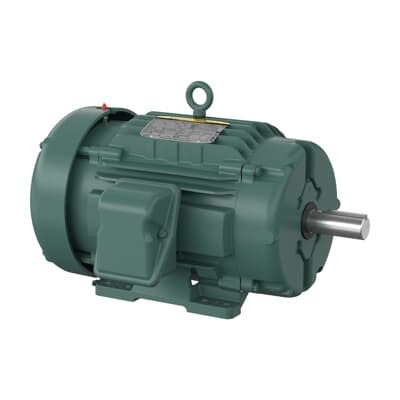

ABB 7BECP82332T-5 Motor - IEEE 841 Severe Duty
Part Number: 7BECP82332T-5
Quick Summary
IEEE 841 Severe Duty motor delivers rugged, reliable performance for continuous operation in harsh industrial environments such as conveyors. This ABB 7BECP82332T-5 model is engineered to minimize downtime, even in dusty or high-temperature settings, thanks to a TEFC enclosure and premium efficiency design. It carries multiple certifications including CSA EEV, NEMA Premium, and UR approvals, streamlining compliance across plants and borders. With a 10 HP rating at 1180 RPM, 575 V three-phase operation, and a 256T frame, it supports demanding processes while enabling energy savings and predictable maintenance. For engineers and procurement teams, this motor offers reliable performance, easy sourcing from stocked warehouses, and a solid total cost of ownership.
Product Information
Extended Description
7BECP82332T-5 ABB: Severe Duty Motor 10 Hp 575 V (ECP82332T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1180RPM,3PH,60HZ,256T,TEFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP82332T-5
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
09LYJ287: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
ECP82332T-5
Gross Volume
14448.906 inÂł
Gross Weight
161.932 kg
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
IP Class
IP56
Insulation Class
F
Invoice Description
10HP,1180RPM,3PH,60HZ,256T,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
IEEE 841 Severe Duty, 10 HP, 1200 RPM, Frame Size 256T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (ECP82332T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
71 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
161.932 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
11.4 A
Rated Efficiency
91.70 %
Rated Speed
1180 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
10 HP, 1200 RPM, Frame Size 256T, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
J
Voltage Rating
575 V
Feature: IEEE 841 Severe Duty construction provides extended life in dusty, hot, and vibration-prone environments. Benefit: lowers maintenance costs and reduces unplanned outages, improving plant uptime. Application: ideal for conveyors, crushers, and material handling in mining and aggregate operations. Feature: Premium efficiency with rated efficiency of 91.70% under 60 Hz operation. Benefit: delivers meaningful energy savings and lower operating costs over the motor’s life. Application: suitable for continuous duty in production lines and processing plants seeking cost-per-kWh reductions. Feature: IP56 enclosure with TEFC protection. Benefit: guards internal windings from dust and moisture, enabling reliable performance on open floors and wet or dirty shop environments. Application: ideal for harsh manufacturing floors, washdown zones, or outdoor-friendly settings. Feature: Regreasable bearings and durable 6309 ball bearings. Benefit: reduces maintenance intervals and extends bearing life, lowering downtime. Application: essential for long-shaft runs in fans, pumps, and equipment with modest misalignment tolerance. Feature: Regulatory certifications (CSA EEV, NEMA Premium, UR). Benefit: streamlines compliance, approvals, and audits across facilities and international sites. Application: supports global procurement programs and multi-site installation projects. Feature: 256T frame with 1.63 in shaft, foot-mounted, DOL starting. Benefit: straightforward installation, compatibility with existing gear trains and belts, and immediate startup readiness. Application: common with conveyors, mixers, and hoisting systems in heavy industry. Industry context: In today’s plant environments, IEEE 841 Severe Duty motors like this ABB model are chosen for predictable performance, longer service life, and lower lifecycle costs, especially where dust, heat, and vibration are present. Long-term maintenance planning and energy benchmarking become more accurate when selecting a motor that ships from multiple stocked warehouses and holds robust industry certifications.
Get a Quick Quote for a ABB 7BECP82332T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECP82332T-5?
Enquire Now
FAQs
The ABB 7BECP82332T-5 is designed for foot-mounted installation with a 256T frame and a 1.63 inch shaft diameter. It supports horizontal mounting and direct-on-line starting, making it compatible with standard gearbox drives and belts. When integrating, verify flange alignment, shaft seating depth, and weigh the motor at approximately 162 kg to ensure proper foundation and vibration control.
At 575 V, 3-phase, 60 Hz, the motor delivers Premium Efficiency with an efficiency rating around 91.7% and a service factor of 1.15 for continuous duty. The IEEE 841 Severe Duty construction enhances reliability in harsh environments, while the TEFC enclosure protects the windings from dust and moisture, supporting long, unattended operation in demanding processes.
Yes. The motor’s 10 HP rating, 1180 RPM (1200 synchronous), 256T frame, and TEFC enclosure make it well-suited for conveyors, pumps, and material-handling equipment in mining, cement, and heavy manufacturing. Its rugged build, IP56 protection, and regreasable bearings help manage dust, heat, and vibration while maintaining stable output and minimal downtime.
The motor carries CSA EEV, UL, NEMA Premium, and UR approvals, along with material and design certifications. This combination supports easier regulatory audits, cross-border procurement, and faster installation approvals in facilities that require energy efficiency, safety, and reliability standards across multiple sites.
Maintenance focuses on bearing lubrication intervals due to regreasable bearings, periodic inspection of the TEFC enclosure seals, and verification of alignment with coupled loads. ROI comes from energy savings through Premium Efficiency, reduced downtime from rugged IEEE 841 design, and lower lifecycle costs through extended motor life and fewer replacements in harsh environments.
