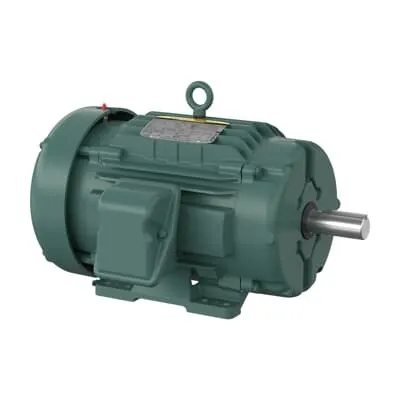

ABB 7BECP82394T-4 Severe Duty Motor - IEEE 841
Part Number: 7BECP82394T-4
Quick Summary
IEEE 841 Severe Duty Motor 7BECP82394T-4 delivers rugged, reliable power for heavy-duty industrial drives such as pumps and fans. Engineers often struggle with downtime and maintenance costs when selecting motors for severe-duty processes in harsh environments. Key certifications include IEEE 841 Severe Duty, NEMA Premium Efficiency, and CSA/UR listings to ensure North American compliance and long-term performance. This motor also delivers strong business value through high efficiency, robust TEFC protection, and a standard footprint that simplifies replacement and uptime across multiple sites.
Product Information
Extended Description
7BECP82394T-4 ABB: Severe Duty Motor 15 Hp 460 V (ECP82394T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,3520RPM,3PH,60HZ,254T,TEFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP82394T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
09LYJ286: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
ECP82394T-4
Gross Volume
15876 inÂł
Gross Weight
133.81 kg
Horsepower Rating UL/CSA
15.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot
IP Class
IP56
Insulation Class
F
Invoice Description
15HP,3520RPM,3PH,60HZ,254T,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
IEEE 841 Severe Duty, 15 HP, 3600 RPM, Frame Size 254T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP82394T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
89 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
31.5 in
Product Net Height
21 in
Product Net Weight
133.81 kg
Product Net Width
24 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
17 A
Rated Efficiency
91 %
Rated Speed
3520 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
15 HP, 3600 RPM, Frame Size 254T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
Feature → Business Impact → Application IEEE 841 Severe Duty design reduces wear in harsh environments, increasing mean time between failures and lowering maintenance costs for continuous operations in mining, cement, and chemical plants. Application-ready with regreasable bearings and a robust frame, it delivers reliable performance where dust, moisture, and temperature fluctuations are the norm. Feature → Business Impact → Application NEMA Premium efficiency at 91% energy use translates to measurable energy savings and lower operating costs across large-scale facilities. Application in pumps, fans, and conveyors across steel, paper, and water treatment sites supports sustainability goals without sacrificing throughput. Feature → Business Impact → Application IP56 TEFC enclosure provides superior protection against dust and water ingress, enabling outdoor and dirty-area installations with fewer enclosure-related failures. Application in outdoor conveyors, quarry feeders, and mining screeners benefits from reduced service interruptions. Feature → Business Impact → Application Direct-on-Line starting and a 3-phase 460 V, 60 Hz supply offer simple integration with existing electrical infrastructure, minimizing control cabinet complexity and startup time. Application in retrofits and new-builds where fast commissioning is critical. Feature → Business Impact → Application Foot-mounted 254T frame with 1.63 in shaft diameter supports straightforward installation and alignment with standard plant baselines, reducing commissioning risk and installation costs. Application in retrofit programs and equipment upgrades across manufacturing lines. Feature → Business Impact → Application Regreasable bearings and a 15 HP, 3520 r/min rating provide long-term reliability in demanding duty cycles, decreasing unplanned downtime and extending service intervals in continuous processes.
