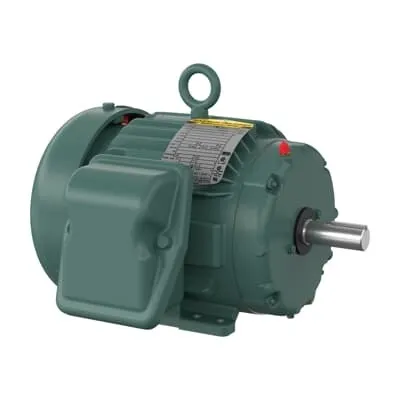

ABB 7BECP83580T-4 IEEE 841 Severe Duty Motors - IE3 Premium
Part Number: 7BECP83580T-4
Quick Summary
IEEE 841 Severe Duty motor ABB 7BECP83580T-4 delivers rugged, reliable 1 HP, 460 V three‑phase performance for demanding industrial drives. For engineers facing harsh environments, unplanned downtime, and costly maintenance, reliability is not optional—it's the difference between uptime and delays. This motor carries key certifications such as NEMA Premium IE3 efficiency, CSA/UR/UL ratings, and CSA EEV, aligning with stringent industry standards. Designed for compatibility with standard foot‑mounted 143T frames and TEFC enclosures, it integrates with existing drives while delivering energy savings and longer service life. When you need a drop‑in replacement that reduces energy consumption and maintenance, this ABB motor delivers clear business value without overhauling your current equipment.
Product Information
Extended Description
7BECP83580T-4 ABB: Severe Duty Motor 1 Hp 460 V (ECP83580T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,3450RPM,3PH,60HZ,143T,0514M,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP83580T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
05LYE811: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
ECP83580T-4
Gross Volume
3496.049 inÂł
Gross Weight
60 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,3450RPM,3PH,60HZ,143T,0514M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
IEEE 841 Severe Duty, 1 HP, 3600 RPM, Frame Size 143T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP83580T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
78 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
60 lb
Product Net Width
13.75 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
1.65 A
Rated Efficiency
77 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.88 in
Short Description
1 HP, 3600 RPM, Frame Size 143T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T4
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
460 V
Feature: IEEE 841 Severe Duty design with enhanced bearings and robust construction → Business Impact: Prolonged motor life and lower maintenance in high-cycle, dusty, or vibratory environments → Application: Conveyors, crushers, crushers and heavy-duty material handling. Feature: IE3 premium efficiency rating → Business Impact: Lower energy costs and reduced operating heat, contributing to longer bearing life and cooler operation → Application: Pumps, fans, and blowers in continuous duty services. Feature: TEFC enclosure with insulation class F → Business Impact: Protection against dust, moisture, and temperature swings, enabling reliable operation in harsh plants → Application: Food processing, mining, aggregate, and woodworking environments. Feature: 143T frame, foot mounting, and horizontal/F1 mounting → Business Impact: Simple integration with existing basements, frames, and drive trains, minimizing install time and retrofit costs → Application: Retrofit projects and new lines with standard footprint. Feature: 3-phase, 460 V, 60 Hz, S.F. 1.25, DOL starting → Business Impact: Compatibility with common plant electrical systems and robust start‑up performance under load → Application: Conveyor belts, compressors, and centrifugal pumps. Feature: NEMA Design B and insulation class F with 1 HP rating → Business Impact: Predictable torque characteristics and reliability across a wide operating envelope, reducing spare parts inventory → Application: General-purpose industrial drives and machine tools. Feature: CSA US/UR and UL certifications plus NEMA premium compliance → Business Impact: Simplified procurement, regulatory alignment, and reduced supplier risk → Application: Regulated industries and multi‑site deployments.
