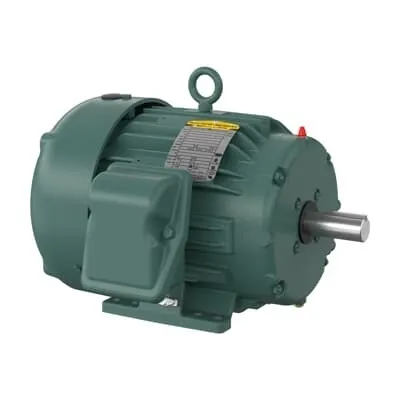

ABB 7BECP83664T-5 Severe Duty Motor - IEEE 841
Part Number: 7BECP83664T-5
Quick Summary
7BECP83664T-5 Severe Duty Motor delivers reliable 2 HP performance for heavy-duty industrial applications such as conveyors and pumps. It addresses uptime challenges by combining rugged IEEE 841-rated construction with a robust TEFC enclosure, designed for continuous operation in tough environments. Key certifications include IEEE 841 Severe Duty, NEMA Premium Efficiency, and CSA EEV, ensuring compliance across North America. With 575 V three-phase power and a frame size 184T, this motor integrates smoothly into existing systems while delivering energy efficiency, predictable lifecycle costs, and stronger overall plant reliability.
Product Information
Extended Description
7BECP83664T-5 ABB: Severe Duty Motor 2 Hp 575 V (ECP83664T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1165RPM,3PH,60HZ,184T,0642M,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP83664T-5
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
06LYH759: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
ECP83664T-5
Gross Volume
5274.135 in³
Gross Weight
128 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1165RPM,3PH,60HZ,184T,0642M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
IEEE 841 Severe Duty, 2 HP, 1200 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (ECP83664T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
68 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
128 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.5 A
Rated Efficiency
88.50 %
Rated Speed
1165 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
2 HP, 1200 RPM, Frame Size 184T, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
K
Voltage Rating
575 V
IEEE 841 Severe Duty design and TEFC enclosure provide exceptional durability in harsh environments, reducing downtime and extending service life in heavy manufacturing. This translates to higher productivity for conveyors and material handling lines, while maintaining consistent torque and rotation under demanding loads. The 2 HP, 575 V, 3-phase configuration delivers reliable start-up and steady performance at 60 Hz, supporting efficient operation of pumps and fans with minimal voltage sensitivity. A foot-mounted 184T frame with a 1.13 in shaft diameter simplifies retrofit and new installations, enabling quick alignment and secure mounting in existing equipment. Regreasable bearings (6206) paired with a 1.15 service factor lower maintenance costs and extend bearing life, reducing spare parts and downtime. Premium efficiency (IE3) and NEMA Design B characteristics help meet energy targets and regulatory expectations while enabling smoother, cooler operation in continuous duty applications.
Get a Quick Quote for a ABB 7BECP83664T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECP83664T-5?
Enquire Now
FAQs
The 7BECP83664T-5 is a 575 V, 3-phase motor rated for 60 Hz operation with a foot-mounted 184T frame. Its direct-on-line starting and standard mounting footprint simplify retrofit into existing equipment and new installations alike, reducing integration risk and installation time.
This motor carries IEEE 841 Severe Duty ratings, NEMA Premium Efficiency (IE3), and CSA EEV certification. These standards confirm robust reliability in harsh environments and energy-efficient operation suitable for North American compliance.
Yes. It features IEEE 841 Severe Duty characteristics, TEFC enclosure, and a temperature class F, providing durability, filtration against dust and moisture, and reliable performance over long shifts typical in conveyors and pumps.
Plan for a regreasable bearing setup (6206) with a shaft diameter of 1.13 in and a 184T frame for straightforward mounting. Direct-on-Line start reduces mechanical complexity, while the 1.15 service factor supports sustained loads; schedule regular bearing lubrication per manufacturer guidelines to maximize life.
With 2 HP output, rated speed 1165 r/min, 2.5 A current, and 88.5% efficiency, the motor offers reliable power delivery and energy savings. The premium efficiency and durable design reduce maintenance and downtime, delivering favorable total cost of ownership and faster ROI in demanding industrial lines.
