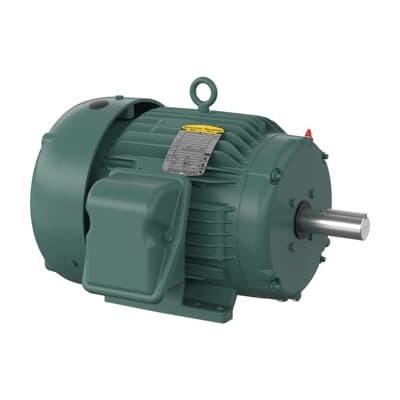

ABB 7BECP83768T-5 Motor - IEEE 841 Severe Duty
Part Number: 7BECP83768T-5
Quick Summary
Severe Duty Motor 5 HP 575 V is engineered for continuous, high-demand operation in harsh industrial environments, delivering reliable torque for conveyors, pumps, and mixers. This ABB motor is designed to minimize unplanned downtime by withstanding tough conditions and demanding duty cycles. It carries critical certifications such as NEMA Premium, CSA EEV, and UR recognition, underscoring compliance and safety for industrial plants. With a 3-phase 60 Hz power profile, TEFC enclosure, and a 215T frame, the motor blends robust electrical performance with practical integration into existing automation ecosystems. The combination of reliability, efficiency, and stock availability supports reduced lifecycle costs and improved plant throughput for engineers and procurement teams alike.
Product Information
Extended Description
7BECP83768T-5 ABB: Severe Duty Motor 5 Hp 575 V (ECP83768T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1160RPM,3PH,60HZ,215T,0748M,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP83768T-5
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
07LYJ415: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
ECP83768T-5
Gross Volume
9144.346 inÂł
Gross Weight
226 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1160RPM,3PH,60HZ,215T,0748M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
1800 r/min
Medium Description
IEEE 841 Severe Duty, 5 HP, 1200 RPM, Frame Size 215T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (ECP83768T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
73 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
226 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.7 A
Rated Efficiency
89.50 %
Rated Speed
1160 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
5 HP, 1200 RPM, Frame Size 215T, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
J
Voltage Rating
575 V
Feature → Business Impact → Application: IEEE 841 Severe Duty design delivers enhanced durability and extended service life in tough environments, reducing maintenance frequency and downtime; ideal for continuous operation in mining, aggregate, and processing facilities. Feature → Business Impact → Application: TEFC enclosure with 575 V / 60 Hz three-phase power provides rugged protection against dust and moisture, enabling reliable operation on conveyors, pumps, and fans in dirty environments. Feature → Business Impact → Application: 5 HP output at 1160 r/min with a 6-pole configuration offers strong starting torque and stable speed control for heavy-load applications such as material handling and extrusion processes. Feature → Business Impact → Application: Regreasable bearings and a 60-minute duty rating lower maintenance costs and extend bearings life, which is critical for long-production runs on mixers and grinding systems. Feature → Business Impact → Application: Foot-mounted 215T frame with F1 mounting and a 1.38 in shaft diameter ensures easy installation and compatibility with common base kits, reducing installation time and civil works. Feature → Business Impact → Application: Premium efficiency level (89.50%) yields measurable energy savings in large-scale, continuous-duty motors, supporting lower total cost of ownership in processing lines and packaging systems.
