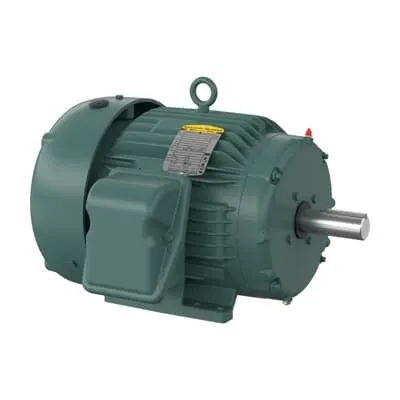

ABB 7BECP83771T-4 IEEE 841 Severe Duty Motor - NEMA Premium
Part Number: 7BECP83771T-4
Quick Summary
IEEE 841 Severe Duty Motor delivers 10 HP at 460 V for continuous operation in challenging industrial environments. This design targets downtime, maintenance costs, and reliability gaps that plague high-load applications. With CSA US, UR, and NEMA Premium certifications, it meets rigorous safety and efficiency standards while the TEFC enclosure protects against dust and moisture. The unit features a 215T frame, foot-mounted orientation, and regreasable bearings for long service intervals. Stocked at multiple warehouses to support fast sourcing, it integrates into existing lines with minimal modification, delivering improved uptime for pumps, conveyors, fans, and mixers in demanding facilities.
Product Information
Extended Description
7BECP83771T-4 ABB: Severe Duty Motor 10 Hp 460 V (ECP83771T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,3475RPM,3PH,60HZ,215T,0742M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6307
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP83771T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
07LYK629: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
ECP83771T-4
Gross Volume
9144.346 inÂł
Gross Weight
225 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot
Insulation Class
F
Invoice Description
10HP,3475RPM,3PH,60HZ,215T,0742M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
IEEE 841 Severe Duty, 10 HP, 3600 RPM, Frame Size 215T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP83771T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
91 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
225 lb
Product Net Width
18.125 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
11.3 A
Rated Efficiency
91 %
Rated Speed
3500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
10 HP, 3600 RPM, Frame Size 215T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
H
Voltage Rating
460 V
Feature → The IEEE 841 Severe Duty construction with TEFC enclosure provides rugged protection in dusty, humid, and high-load environments. Business Impact → Reduces unplanned downtime, extends bearing life, and lowers maintenance costs, enabling more reliable production lines. Application → Ideal for pumps, conveyors, and material-handling equipment that operate under continuous duty and harsh conditions. Feature → Regreasable bearings (6307) and a 1.15 service factor. Business Impact → Enhances bearing longevity and torque stability under peak load, reducing the risk of sudden failures. Application → Suitable for high-torque start-ups in belt-driven conveyors and mixer drives. Feature → 3-phase 460 V operation at 60 Hz with direct-on-line starting. Business Impact → Simplifies electrical design, minimizes soft-start hardware, and lowers energy losses during start-up. Application → Common in plant-wide installations where standard 3-phase power is readily available. Feature → 215T frame, foot-mounted, and flying-start ready with a TEFC enclosure. Business Impact → Facilitates straightforward retrofit and rapid replacement with minimal mechanical modification. Application → Aligns with standard mounting footprints in existing equipment and machine baselines. Feature → Premium efficiency (91%) and 10 HP output. Business Impact → Energy savings across continuous duty cycles, improving total cost of ownership. Application → Suitable for process lines with long runtimes and strict energy-performance targets. Feature → Stocked at warehouses in the US, Germany, China, and more. Business Impact → Short lead times and predictable procurement. Application → Supports fast project startup and regional service coverage for global operations.
