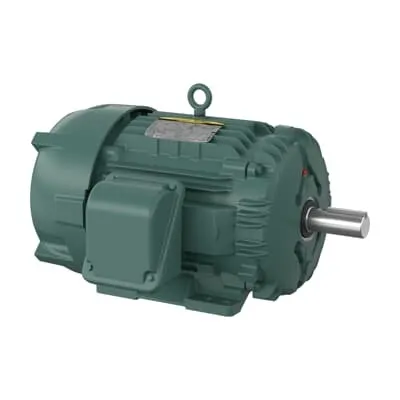

ABB ECP84104T-5 Severe Duty Motor - NEMA Premium
Part Number: 7BECP84104T-5
Quick Summary
ABB ECP84104T-5 Severe Duty Motor is a 30 HP, 575 V three-phase solution designed for demanding industrial environments. Engineers often struggle with downtime and premature wear in harsh plants, making reliability and maintenance cost critical. This motor combines premium efficiency with rugged certifications to deliver energy savings and compliance confidence, including NEMA Premium, CSA EEV, and UR listings. Its TEFC enclosure, IEEE 841 severe-duty design, and regreasable bearings support long life in cement, mining, and process applications. For procurement teams, the 0-day lead time and stock across multiple warehouses help accelerate project starts while preserving total cost of ownership.
Product Information
Extended Description
7BECP84104T-5 ABB: Severe Duty Motor 30 Hp 575 V (ECP84104T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1770RPM,3PH,60HZ,286T,TEFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP84104T-5
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
10LYH231: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
ECP84104T-5
Gross Volume
14448.906 inÂł
Gross Weight
489 lb
Horsepower Rating UL/CSA
30.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
IP Class
IP56
Insulation Class
F
Invoice Description
30HP,1770RPM,3PH,60HZ,286T,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
IEEE 841 Severe Duty, 30 HP, 1800 RPM, Frame Size 286T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (ECP84104T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
84 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
489 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
28 A
Rated Efficiency
93.60 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
30 HP, 1800 RPM, Frame Size 286T, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class
T3C
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
575 V
IEEE 841 Severe Duty construction delivers enhanced durability and reduced maintenance, translating to lower total cost of ownership in continuous operation environments such as mining and cement plants. The 575 V, 3-phase, 60 Hz electrical rating ensures compatibility with standard industrial power distribution while supporting efficient operation and reduced energy consumption through Premium Efficiency design. The TEFC enclosure with IP56 protection provides reliable performance in dusty or moist facilities, enabling installation in outdoor or harsh indoor conditions. Regreasable bearings extend lubrication intervals and minimize unplanned downtime, especially in extended duty cycles common in material handling and pump applications. The 286T frame with 286T- suffix and 1.88 in shaft diameter simplifies mounting and alignment for retrofits or OEM builds, while a 30 HP output and 30/60 Hz capability support a wide range of process loads. Stock availability and zero lead time reduce project delays, with multiple warehouses ensuring rapid fulfillment for urgent replacements.
Get a Quick Quote for a ABB 7BECP84104T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECP84104T-5?
Enquire Now
FAQs
The ECP84104T-5 is designed for foot mounting with horizontal orientation and a mounting position of F1. It uses a standard drive end flange and a 286T frame, simplifying retrofit into existing basements or OEM assemblies. This setup reduces alignment time and supports reliable coupling with standard couplings, aiding faster commissioning and predictable vibration performance in conveyors, pumps, or fans.
This motor runs on 575 V, 3-phase, 60 Hz with a rated current of 28 A and outputs 30 HP. It features a premium efficiency rating of 93.60%, an insulation class F, and IP56 protection. It has a 4-pole design with a synchronous speed of 1800 r/min and a rated speed of 1770 r/min, suitable for continuous duty in demanding processes.
Yes. The IEEE 841 Severe Duty construction, regreasable bearings, 60-minute duty cycle, and robust TEFC enclosure are specifically chosen for continuous operation in harsh environments. IP56 protection and a rugged frame ensure reliability in dusty, humid, or particulate-heavy plants, reducing maintenance frequency and downtime in mining, cement, and aggregate applications.
The motor carries NEMA Premium efficiency ratings along with CSA EEV, UR, and CCSA US certifications. These listings support compliance with energy and safety standards across North America, aiding procurement and system integration for regulated industries and helping to meet green manufacturing targets.
The ECP84104T-5 is stocked across multiple warehouses with a 0 day lead time, enabling rapid project start-ups. Stock locations include EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, and USABB014EXPU, supporting fast fulfillment for replacements, OEM builds, or large-scale deployments in the US, China, and nearby regions.
