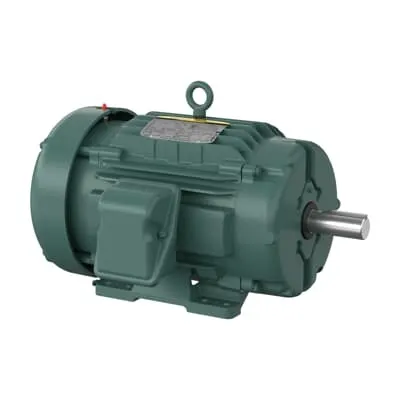

ABB 7BECP84106T-4 Motor - IEEE 841 Severe Duty
Part Number: 7BECP84106T-4
Quick Summary
ABB 7BECP84106T-4 is a robust IEEE 841 Severe Duty motor designed for heavy industrial applications such as conveyors, crushers, and processing lines. This motor delivers durable performance in harsh environments where uptime matters. Common pain points—unexpected motor failures, costly maintenance, and energy waste—are addressed by a design that prioritizes reliability and efficiency. The unit aligns with demanding standards and carries NEMA Premium Efficiency, IP56 protection, and TEFC enclosure to withstand dust, moisture, and temperature swings. With a 256T frame and 20 HP at 460 V, it supports quick procurement across multiple stocking locations, reducing downtime and preserving production throughput. The result is lower total cost of ownership and steadier, more predictable plant performance.
Product Information
Extended Description
7BECP84106T-4 ABB: Severe Duty Motor 20 Hp 460 V (ECP84106T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,3510RPM,3PH,60HZ,256T,0954M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP84106T-4
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
09LYG557: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
ECP84106T-4
Gross Volume
14448.906 in³
Gross Weight
138.346 kg
Horsepower Rating UL/CSA
20.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot
IP Class
IP56
Insulation Class
F
Invoice Description
20HP,3510RPM,3PH,60HZ,256T,0954M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
IEEE 841 Severe Duty, 20 HP, 3600 RPM, Frame Size 256T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (ECP84106T-4)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
91 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
138.346 kg
Product Net Width
23.75 in
Product Type
NEMA_IEEE841
Quote Only
No
Rated Current (In)
22 A
Rated Efficiency
91 %
Rated Speed
3510 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
20 HP, 3600 RPM, Frame Size 256T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
460 V
IEEE 841 Severe Duty design drives extended life in vibration-heavy environments, delivering higher reliability for demanding processes. This translates to reduced unplanned downtime and lower maintenance costs, especially in mineral processing, cement, and aggregate operations where harsh conditions threaten conventional motors. The motor’s rated efficiency of 91% underlines energy savings in continuous-duty service, cutting operating expenses and supporting green manufacturing initiatives. Regreasable bearings and robust 6309 ball bearings enable longer lubrication intervals and easier field servicing, minimizing shop time and extending service intervals for pumping stations and conveyors. The TEFC enclosure with IP56 protection shields critical windings from dust and moisture, ensuring compliance with harsh-site requirements and safe operation in dusty or humid plants. Quick stock availability (0 day lead time) and multiple warehouse stocking locations support rapid procurement for uptime-critical projects. The 256T frame, 1.63 in shaft diameter, and foot-mounted, horizontal F1 mounting simplify installation, retrofit, and alignment with legacy equipment, reducing installation risk and enabling smoother OEM integration. Industry-standard 60 Hz operation at 460 V and 3-phase power aligns with typical plant electrical infrastructure, enabling straightforward integration with existing drives and controls. Overall, this motor offers measurable uptime improvements, easier maintenance planning, and a clear path to lower total cost of ownership for heavy-duty applications.
Get a Quick Quote for a ABB 7BECP84106T-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECP84106T-4?
Enquire Now
FAQs
This model uses a Foot Mounted base with Horizontal mounting and a mounting position of F1. It fits frame size 256T, shaft diameter 1.63 in, and is designed for direct replacement or retrofit in equipment configured for 256T frames. When planning a retrofit, verify flange alignment, shaft end clearance, and existing enclosure access to ensure straightforward installation and minimal downtime.
Key specs include 20 HP output at 3510 rpm nominal speed, 460 V, 60 Hz, 3-phase, IP56/TEFC enclosure, and a service factor of 1.15. Rated current is 22 A with a high-efficiency profile (Premium Efficiency). Insulation class is F, with a maximum operating ambient of 40 °C and a temperature class of T3, supporting consistent performance in typical plant environments.
IEEE 841 Severe Duty motors excel in harsh, dusty, or high-vibration settings such as mining, cement, aggregate processing, conveyors, crushers, and material handling. The combination of TEFC enclosure, IP56 protection, and high reliability makes it a preferred choice for continuous-duty drives in demanding installations where uptime is critical.
The motor carries multiple certifications including UL, CSA EEV, NEMA Premium, and UR. Country of origin is the United States, and it adheres to CE-related expectations for industrial reliability. Certifications help simplify procurement, compliance audits, and integration with regulated control systems.
Regreasable bearings and long-life 6309 bearings reduce maintenance frequency and downtime. The 91% rated efficiency lowers energy consumption, contributing to lower operating costs over the motor’s life. Stock availability and zero lead time support rapid deployment for uptime-critical projects, improving overall return on investment and production throughput.
