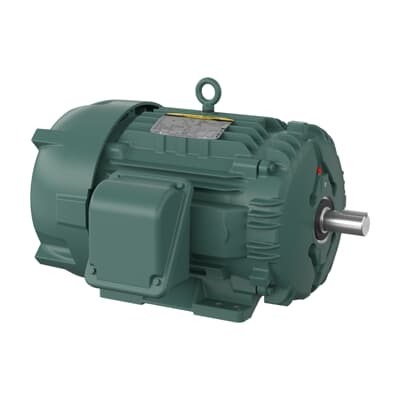

ABB 7BECP84108T-5 IEEE 841 Severe Duty - NEMA Premium
Part Number: 7BECP84108T-5
Quick Summary
ABB 7BECP84108T-5 is a IEEE 841 severe-duty motor built for continuous operation in demanding industrial drive applications. It addresses uptime challenges in conveyors, pumps, and fans by delivering rugged reliability and predictable maintenance intervals. The design carries NEMA Premium efficiency, CSA EEV, and UR certifications, aligning with energy codes and safety standards while improving long-term reliability. With 30 HP, 575 V, 3-phase operation, TEFC enclosure, and a 286TS frame, it performs in harsh plants while reducing energy costs. Built for 60 Hz service, its regreasable bearings and robust construction support extended service intervals and lower total cost of ownership.
Product Information
Extended Description
7BECP84108T-5 ABB: Severe Duty Motor 30 Hp 575 V (ECP84108T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,3525RPM,3PH,60HZ,286TS,TEFC,F1
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECP84108T-5
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
10LYJ567: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
Class I, Group A, B, C & D
Frame Material
Iron
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
ECP84108T-5
Gross Volume
14448.906 in³
Gross Weight
422 lb
Horsepower Rating UL/CSA
30.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
IP Class
IP56
Insulation Class
F
Invoice Description
30HP,3525RPM,3PH,60HZ,286TS,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Maximum Speed
5400 r/min
Medium Description
IEEE 841 Severe Duty, 30 HP, 3600 RPM, Frame Size 286Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (ECP84108T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
90 %
Product Name
IEEE 841 Severe Duty
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
422 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
27.3 A
Rated Efficiency
91.70 %
Rated Speed
3525 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
30 HP, 3600 RPM, Frame Size 286Ts, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class
T3
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
575 V
Feature: IEEE 841 Severe Duty design for rugged environments. Business Impact: Improves uptime in harsh plants by resisting shock, vibration, and dust ingress. Application: Mining conveyors, cement mill drives, and heavy-duty pumps. Feature: Premium Efficiency (NEMA Premium) with Rated Efficiency of 91.70% and Power Factor ~0.90. Business Impact: Reduces energy consumption and operating costs over the motor’s life, supporting green initiatives without sacrificing torque. Application: Long-running material handling and processing lines. Feature: TEFC enclosure with IP56 protection. Business Impact: Protects windings from dust, water spray, and humidity, lowering thermal stress and maintenance cycles. Application: Dry to moderately wet, dusty manufacturing floors and outdoor installations. Feature: 3-phase, 575 V operation with 30 HP rating and 286TS frame. Business Impact: Seamless integration with standard plant electrical systems and common VFDs, reducing wiring complexity and retrofit risk. Application: Conveyor drives, pumping stations, and fans on 60 Hz networks. Feature: Foot-mounted, horizontal mounting with DOL starting. Business Impact: Simplifies installation and serviceability, enabling quick retrofit or new-build deployment. Application: OEM and end-user retrofit projects in industrial facilities. Feature: Regreasable bearings and 60-minute duty capability. Business Impact: Extends bearing life and reduces lubrication downtime, lowering maintenance cost and unplanned outages. Application: Load-bearing conveyor and press systems in continuous duty environments.
